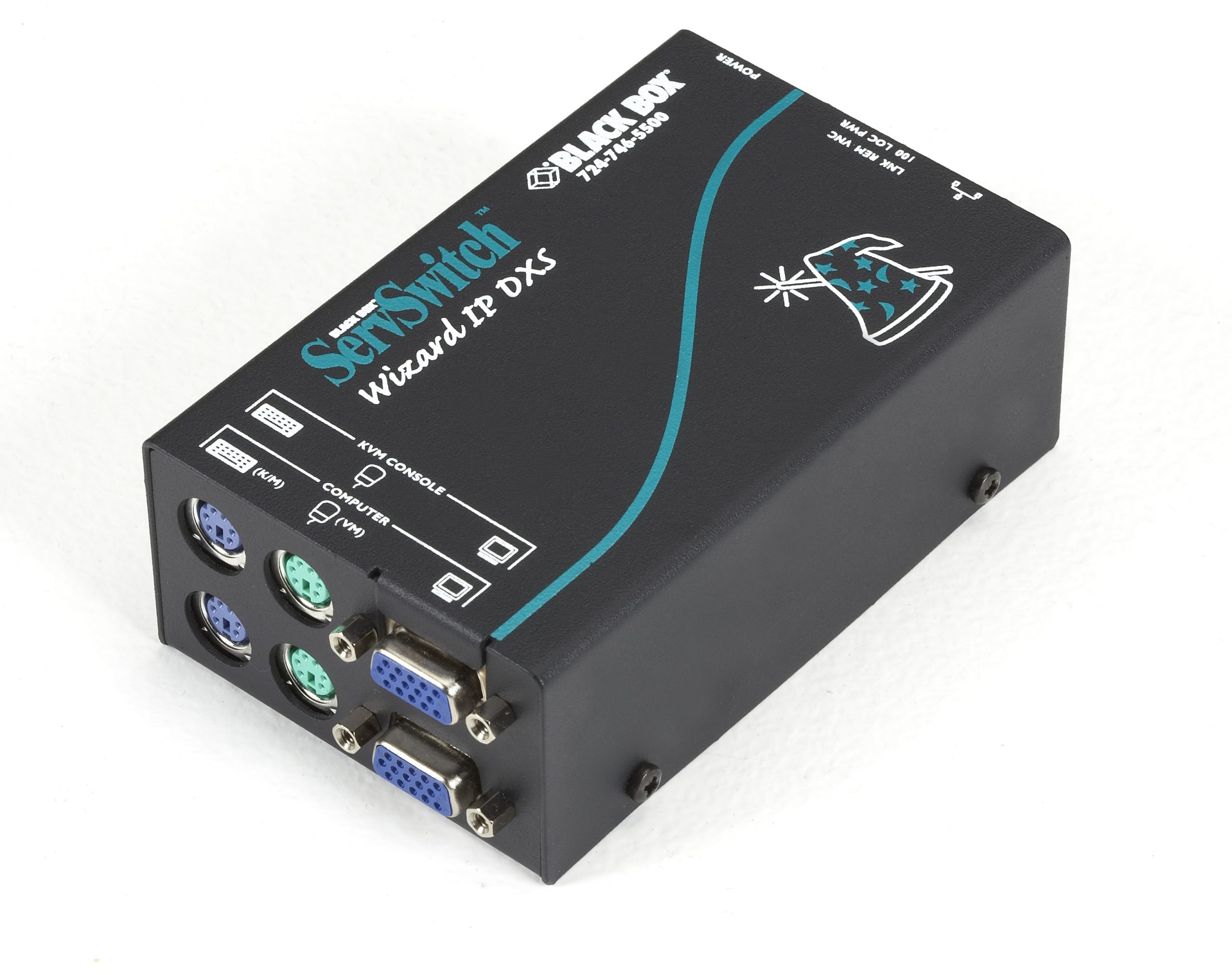

Black Box Wizard IP DXS IP Gateway – Dual-Access VGA, PS/2

Part Number: ACR201A



  • Enables users and administrators to access computers and KVM switches from over the network or over the internet
  • Support for VNC, with a local User Port
  • Support for VGA targets up to 1600×1200 with USB or PS/2 keyboard and mouse
  • Supports USB or PS/2 systems and servers (USB adapter included).
  • High-performance video and smooth mouse handling via IP.
  • Features 16 user profiles and access data logging.
  • Autosensing 10-/100-Mbps Ethernet port.
  • Dual access enables user to connect via local LAN or remote WAN.

The ServSwitch Wizard IP DXS eliminates bottlenecks in mission-critical server administration. Connected to each of your servers, this small-form-factor IP engine provides system administrators with full non-blocking remote access from anywhere in the world.

Its small size and Real VNC make this KVM-over-IP solution ideal for enterprise remote management. Security features AES 128-bit encryption, RSA 2048-bit public key authentication, and the use of Real VNC, enabling the creation of ciphered user communications.



General
Approvals CE
Hardware Compatibility IBM® PC, PS/2, and compatibles; Sun® USB; Mac® USB; RS/6000®; DEC™ Alpha; SGI™
Operating Systems All known software and OSs: Windows®, DOS, Linux®, Unix®, BSD, Sun OS, Solaris®, Mac® OS, NetWare®
Power 100-240 VAC, 50-60 Hz
Resolution (Maximum) 1600 x 1200
Software Compatibility All known software and OSs: Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare
Item Specifications
Connectors Computer: (2) VGA F; (4) PS/2 F with USB adapter for keyboard and mouse; Remote: (1) RJ-45 10/100 autosensing for TCP/IP; (1) 2.5-mm barrel
Dimensions 1″H x 4.8″W x 3.1″D (2.7 x 12.2 x 7.9 cm)
