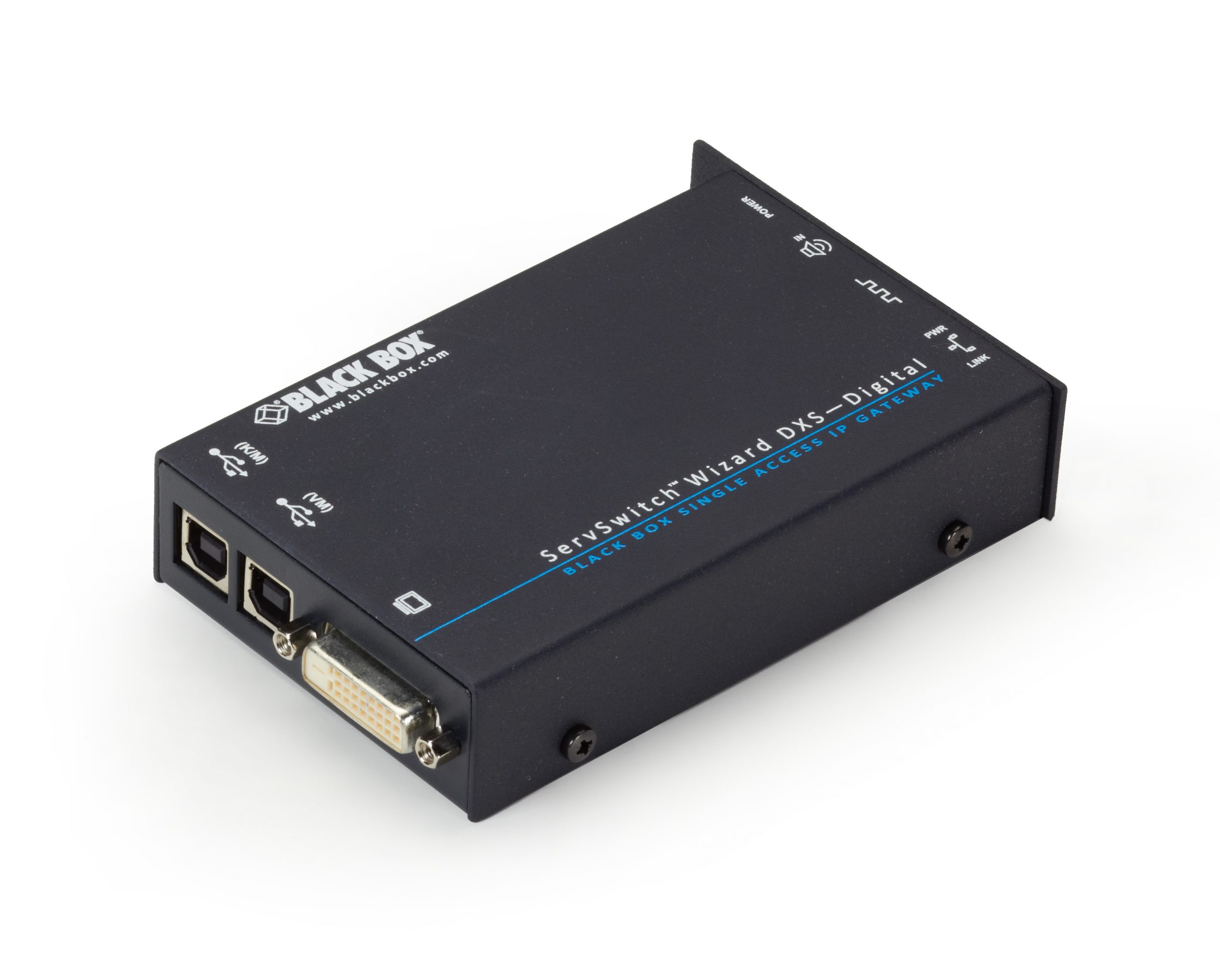

Black Box Wizard IP DXS IP Gateway – Single Server, DVI-D
Part Number: ACR101A-DVI
- Enables users and administrators to access computers and KVM switches from over the network or over the internet
- Support for VNC and Virtual Media for transferring files
- Support for DVI-D targets up to 1920×1200 with a USB keyboard and mouse
- Network-independent operation. Provides full control during bootup.
- Enables BIOS-level control of a computer during crash states.
- Supports virtual media via USB for easy remote file transfer.
- Highly secure and supports both IPV4 and IPV6 addresses.
- Includes Windows® VNC viewer for configuring settings and making connections.
- Ideal for remotely upgrading or patching distant host systems.
- Enables same-session access by up to four remote users at one time.
- Compact, palm-sized unit can be rack-mounted in the ACU5000A.
| Approvals | CE, RoHS |
| Encryption | AES 128-bit; RSA 2048-bit public key authentication |
| MTBF | 90,000 hours |
| Operating Environment | Temperature: 32 to 104° F (0 to 40° C); Humidity: Up to 80%, noncondensing |
| Power | Input: 100-240 VAC, 50-60 Hz, 0.4 A (max.) from the included adapter; can also be USB interface-powered via (2) USB cables connected via its USB keyboard/mouse port and USB virtual media port; Output: 5 VDC, 2.5 A (max.); Consumption: 12.5 watts |
| Resolution | 1920 x 1200 with scalable viewer |
| User Controls | Via the included VNC application and (2) DIP switches |
