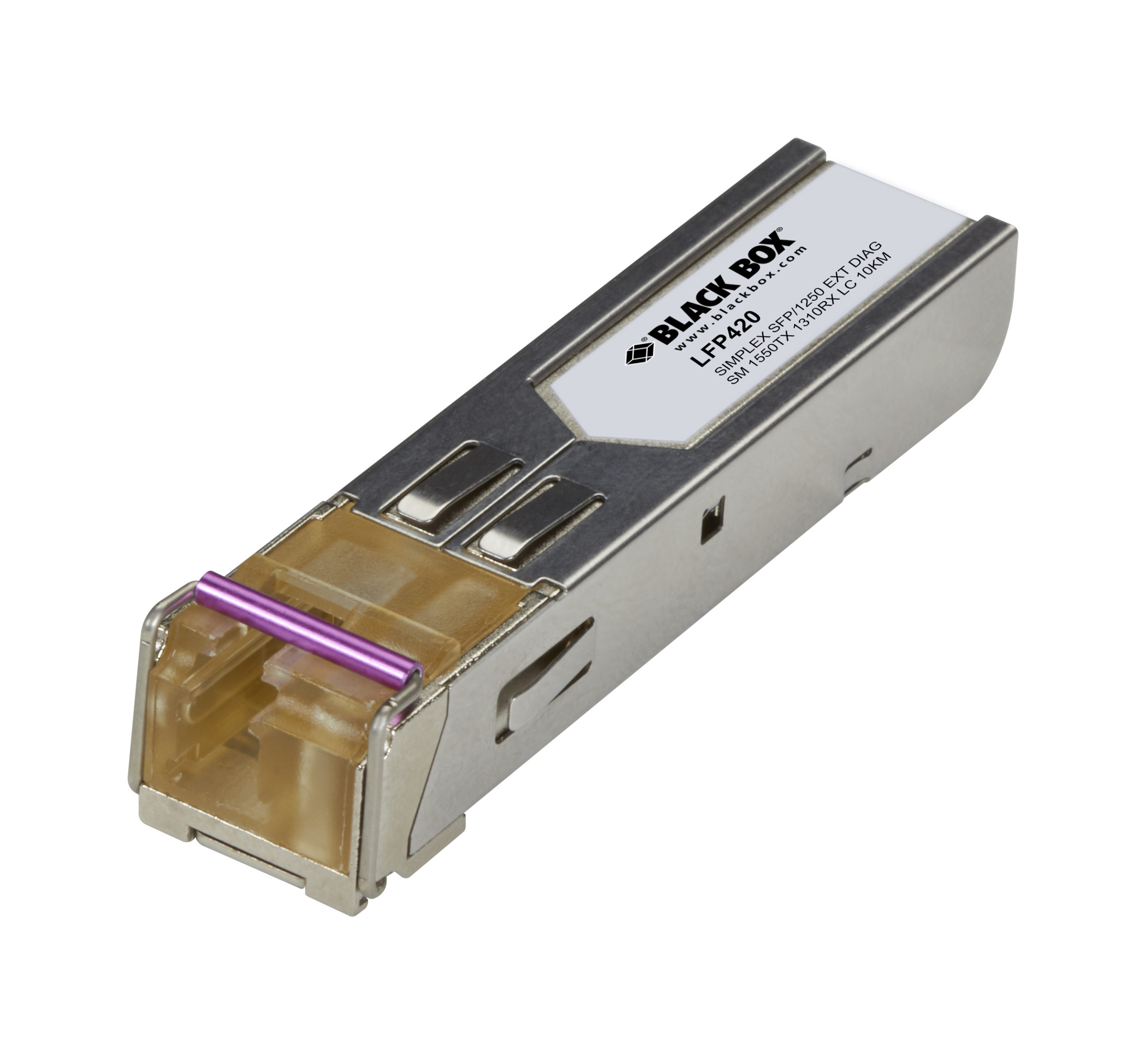

Black BoxLFP410 Series Gigabit (1.25-Gbps) Extreme Temperature SFP with Extended Diagnostics – (1) 1.25-Gbps Singlemode Simplex Fiber, 1550/1310nm, 10km, LC
Part Number: LFP420
- This SFP optical transceiver enables you to adapt an SFP slot to a fiber interface.
- Because it’s transparent to data, this SFP is compatible with any network standard operating at speeds of up to 1250 Mbps.
- Supports an extended diagnostics and extended operating temperature of -40 to 176F (-40 to +85C).
- Ideal for applications where you only have a single fiber available.
- Support for throughput up to 1250 Mbps makes this SFP ideal for use with high-speed applications such as Gigabit Ethernet.
- Hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
| General | |
| Altitude | 5905 ft. (1800 m) |
| Approvals | CMSA, Class 1 laser-safety standard IEC 825 |
| Environmental | Operating Humiditiy: 85% non-condensing; |
| Input Voltage | 3.3 VDC (3.1 V minumum to 3.5 V maximum) 330 mA |
| Operating Humidity | 85% non-condensing |
| Operating Temperature | -40° to +185° F (-40° to +85° C) |
| Power | SFP Cage |
| Speed | 1.25-Gbps |
| Item Specifications | |
| Dimensions | 0.59″ W x 0.69″ H x 2.75″ D (1.5 x 1.76 x 7.0) |
| Weight | .05 lbs (.023 kg |
