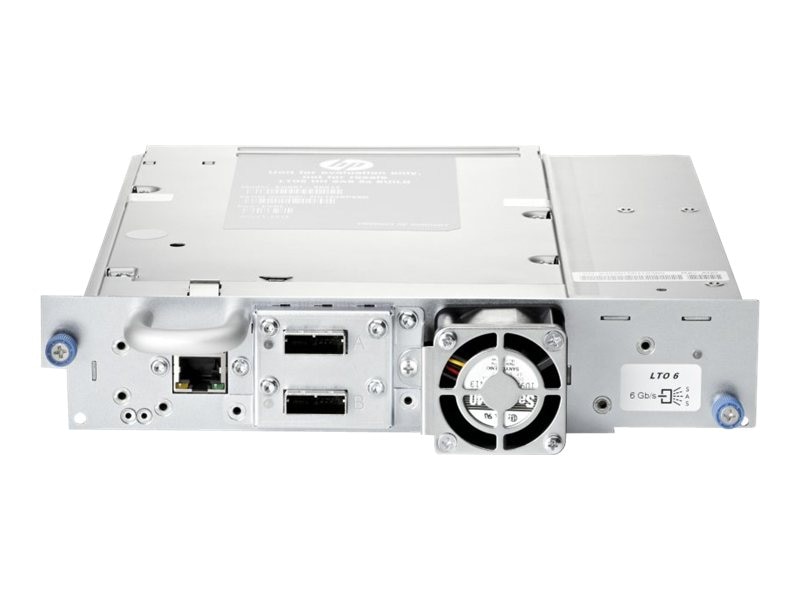

HP MSL LTO-6 ULTRIUM 6250 SASDRIVE UPGRADE KIT
Part Number: C0H27A
The HP LTO-6 Ultrium 6250 tape drive represents HP’s sixth-generation of LTO tape drive technology capable large store capacity per cartridge while providing enterprise tape drive monitoring and management capabilities with HP TapeAssure – ease of use with support for LTFS and AES 256-bit hardware data encryption easy-to-enable security to protect the most sensitive data and prevent unauthorized access of tape cartridges.
General
Device Type
Tape library drive module – LTO Ultrium
Recording Standard
LTO Ultrium 6
Enclosure Type
Internal
Interface Type
SAS-2
Key Features
Encryption
Width
14.5 cm
Depth
20.6 cm
Height
4.1 cm
Weight
1.45 kg
Storage Removable
Type
LTO Ultrium – 5.25″ x 1/2H
Capacity
2.5 TB (native) / 6.25 TB (compressed)
Supported Tape Cartridges (Read and Write)
Ultrium 6, Ultrium 5
Recording Standard
Ultrium 5, Ultrium 6
Data Transfer Rate (native)
160 MBps (576 GBph)
Data Transfer Rate (compressed)
400 MBps (1440 GBph)
Average Seek / Access Time
50 sec
Buffer Size
512 MB
Expansion / Connectivity
Interfaces
1 x SAS-2 – 29 pin internal SAS (SFF-8482)
Compatible Bay
1 x front accessible – 5.25″ x 1/2H
Miscellaneous
MTBF
250,000 hour(s)
Compliant Standards
TUV, VCCI, C-Tick, BSMI, EN 60950, NOM, RRL, IEC 60950, CSA 22.2 No. 60950, CB, RoHS, FCC CFR47 Part 15, cCSAus
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 – 80% (non-condensing)
