Panasonic Standard docking Cradle for CF-D1

Part no: CF-VEBD11AU | NSN: 5895-66-161-5919

Panasonic Standard docking Cradle for CF-D1

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

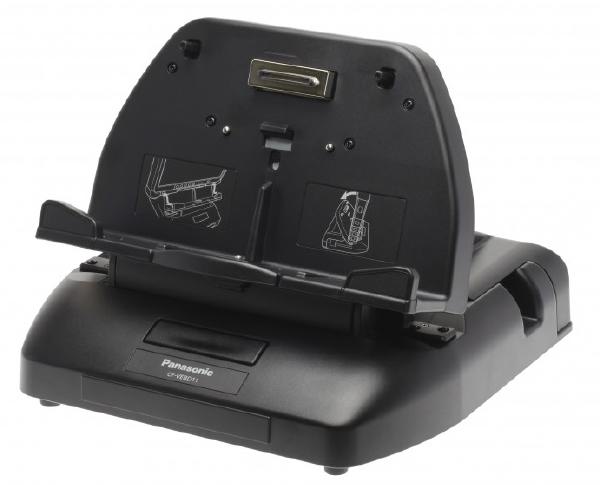

Panasonic Standard docking Cradle for CF-D1

Part Number: CF-VEBD11AU

By connecting your peripheral devices to the cradle, you can save yourself the trouble of having to connect and disconnect several cables every time you transport the computer.

Power Supply Input : DC15.6 V (Use the specified AC adaptor supplied with the computer or one sold separately as an accessory.)
Expansion Bus Connector : 100-pin
USB 2.0 Port : USB 2.0 × 5 (complies with USB 2.0)
Allowable current for each port : 500 mA
USB 2.0 Port (Pass Through) :  USB 2.0 × 1 (complies with USB 2.0)
Allowable current for each port : 500 mA
LAN Port :  IEEE802.3ab 1000BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T (RJ-45)
HDMI Port :  HDMI × 1 For exclusive use with HDMI standard
VGA Port :  Mini Dsub 15-pin female (Analog interface)
Serial Port : RS-232C Dsub 9-pin
Microphone Jack Miniature jack, 3.5 DIA
Headphone Jack Miniature jack, 3.5 DIA
Physical Dimensions (W x H x D) Approx. 292 mm x 233 mm x 284 m

Click here for spec guide from Panasonic
