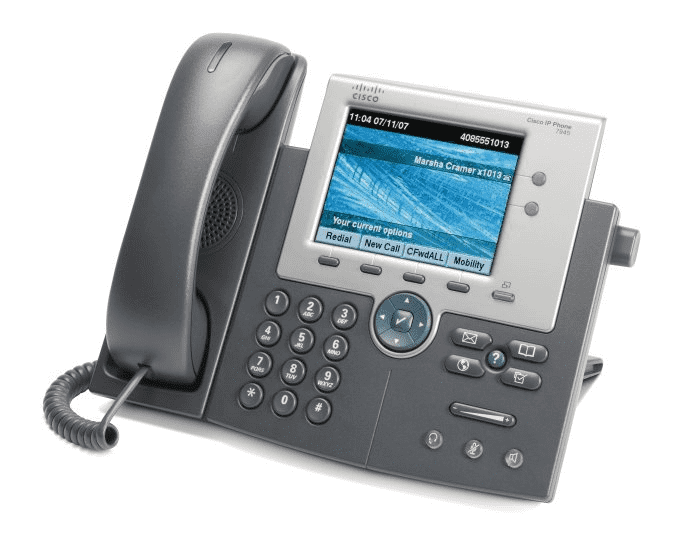

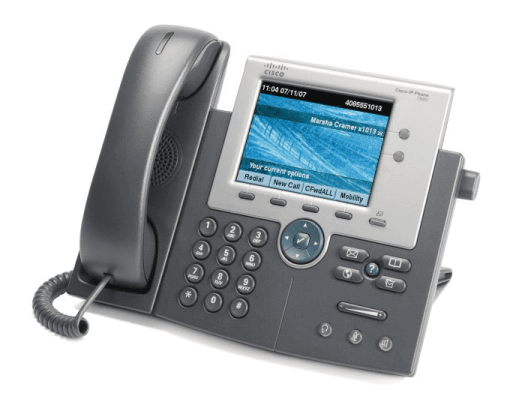

CiscoUnifiedIP Phone7945, Gig Ethernet, Color
Part Number: CP-7945G
The Cisco Unified IP Phone 7945G demonstrates the latest advances in VoIP telephony, including wideband audio support, backlit color display, and an integrated Gigabit Ethernet port. It addresses the needs of transaction-type workers with significant phone traffic and the needs of those working with bandwidth-intensive applications on co-located PCs.
Brand
Cisco
Use
Business
Type
VoIP
Feature
With Speakerphone, With Caller ID
General
Body Colour
Silver, dark grey
Body Material
ABS plastic
Phone Features
Dialer Type
Keypad
Dialer Location
Base
Conference Call Capability
Yes
Speakerphone
Yes (digital duplex)
Menu Operation
Yes
Volume Control
Yes
Ringer Control
Yes
Firmware Upgradable
Yes
Additional Functions
Web browser
IP Telephony
VoIP
Yes
VoIP Protocols
SCCP, SIP
Voice Codecs
G.722, G.729a, G.729ab, G.711u, G.711a, iLBC
Quality of Service
IEEE 802.1Q (VLAN), IEEE 802.1p
IP Address Assignment
DHCP, static
Security
128 bit AES
Power Over Ethernet (PoE) Support
Yes
Network Protocols
TFTP
Network Ports Qty
2 x Ethernet 10Base-T/100Base-TX/1000Base-T
Voice Features
Echo cancellation (ECN)
Network Features
Class 3 PoE
Display
Type
LCD display – colour
Display Location
Base
Diagonal Size
5″
Display Resolution
320 x 240 pixels
Colour Depth
16-bit (65000 colours)
Display Information
Date, time
Backlit
Yes
Miscellaneous
Connections
Headset jack
Hearing Aid Compatible
Yes
Placing / Mounting
Wall-mountable, table-top
Dimensions & Weight (Base)
Width
26.7 cm
Depth
15.2 cm
Height
20.3 cm
Weight
1.6 kg
