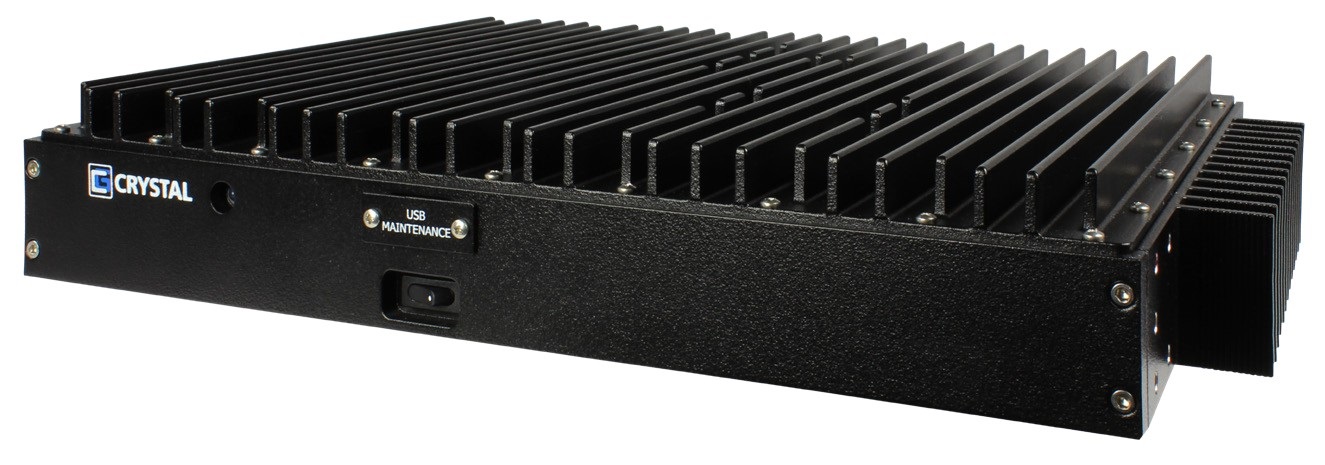

CRYSTAL GROUP ES1012 Substation Computer
Part Number: ES1012
Metromatics is delivering Rugged Embedded Computer Solutions that are powered by Intel®, to ensure reliable high performance computing in the remote, unpredictable environment of power substations.
The ES1012 is Rugged Embedded Computer that is compact, weighs just over 3kg and designed to bring power substations to the edge with grid modernisation.
Firstly, the Crystal Group’s ES™ Energy Series – ES1012 Substation Computer Solution delivers a whole new level of high performance computing for those remote power substations. Secondly, it is designed for grid modernisation at the edge. However, it also contains an advanced thermal management system enclosed in an all-aluminium chassis.
The ES1012 Substation Computer Solution has been field tested to withstand electrical shock, airborne contaminants and humidity in volatile environments. It also follows the Intel® Product Roadmap to ensure the latest innovations of Intel® chipsets and scalable processors.
ES1012 Substation Computer
- Compact – 6.09cm H x 40cm x 27.94cm Weighs 3.4Kg
- Panel or Rack Mounting Options
- Six Core Intel® Xeon® D-1528 CPUs
- Dual 2.5” SSD Hard Drives
- Billet Construction from milled and strain hardened 6061-T6511 Structural Aircraft Aluminium
- IEEE 1613 and IEC 61850-3 Compliance including surge and lightning strike protection
- Fanless, no moving parts & high reliability
