CRYSTAL GROUP RPS425DC1U Rugged Power Supply

Part no: RPS425DC1U

CRYSTAL GROUP RPS425DC1U Rugged Power Supply

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

CRYSTAL GROUP RPS425DC1U Rugged Power Supply

Part Number: RPS425DC1U

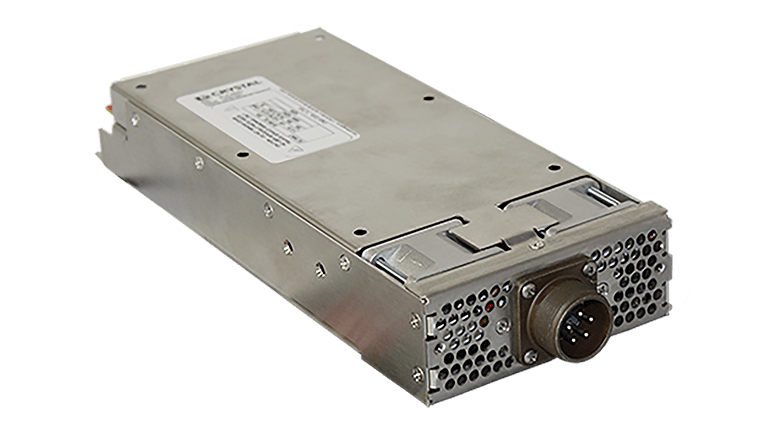

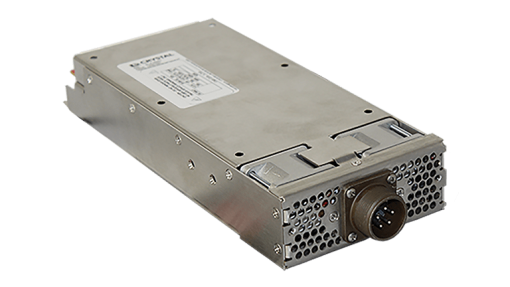

Model RPS425DC1U is a 1U ATX Modular Rugged Power Supply that is MIL-STD/RTCA qualified.   This 425W power supply is 70 in3 of volume, and offers big power in a small package.

Click on the details tab below; for further information.

RPS425DC1U Rugged Power Supply

The RPS425DC1U is a Rugged Power Supply designed, manufactured and tested by the Crystal Group.

Features include:

• Compact 1U, 18-36VDC power supply w/ ATX output
• Modular electrical output identical to Seasonic SS-460H1U including cables and mounting holes
• 273.5 mm x 101.6 mm x 41.4 mm footprint
• Tested to MIL-STD-461, and DO-160, Section 21, Cat M
• Convection cooled design relies on internal long-life fans
• Tested to MIL-S-901 and MIL-STD-810, Method 514 , Proc. I
