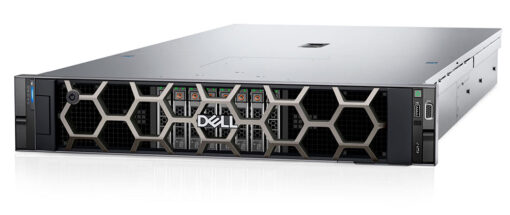

Dell PowerEdge R760xa Rack Server
Part number: R760xa
The widest range of PCIe-based GPUs in a cost-effective 2RU server configuration optimized for accelerator air cooling and power requirements. Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications.
- Compute: Two 4th or 5th Generation Xeon® processors with high core count of up to 64 cores and on-chip AI acceleration
- Memory: Up to 32 DDR5 memory DIMM slots, up to eight drives, and PCIe Gen 5 expansion slots
- Cooling: Air-cooled design with front-facing accelerators enables better cooling and supports higher TDP accelerators (up to 350 W)
Processor
Up to 2 x 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and with optional Intel® QuickAssist Technology
Operating System
Canonical® Ubuntu® Server LTS
Microsoft Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset
Intel® C741 Chipset
Memory
DIMM Speed
Up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor
Memory Type
RDIMM
Memory Module Slots
32 DDR5 DIMM slots
Maximum RAM
RDIMM 8 TB
Storage
Front Bay
Up to 6 x 2.5-inch NVMe, max 92.16 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
Storage Controllers
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish®
iDRAC Service Module
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
Dell System Update
Enterprise Catalogs
Dell Repository Manager
OpenManage Integrations
BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
RedHat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager
Power Supplies
2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
Ports
Network Options
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports
1 x USB 3.0 (optional)
Slots
1 x USB 3.0 (optional)
12 PCIe slots:
Slot 1: 1 x16 Gen5 Full height, Half length
Slot 2: 1 x16 Gen5 Full height, Half length
Slot 7: 1 x16 Gen5 Full height, Half length
Slot 8: 1 x16 Gen5 Full height, Half length
Slot 31: 1 x8 Gen5 Full height, Full length
Slot 32: 1 x8 Gen5 Full height, Full length
Slot 33: 1 x8Gen5 Full height, Full length
Slot 34: 1 x8 Gen5 Full height, Full length
Slot 35: 1 x8 Gen5 Full height, Full length
Slot 36: 1 x8 Gen5 Full height, Full length
Slot 37: 1 x8 Gen5 Full height, Full length
Slot 38: 1 x8 Gen5 Full height, Full length
Bezel
Optional LCD bezel or security bezel
Form Factor
2U rack server
Dimensions & Weight
Height
3.41 inches (86.8 mm)
Width
18.97 inches (482 mm)
Depth
37.27 inches (946.73 mm) with bezel
36.73 inches (932.89 mm) without bezel
Weight:
Max 60.63 lbs. (27.5 Kg)
