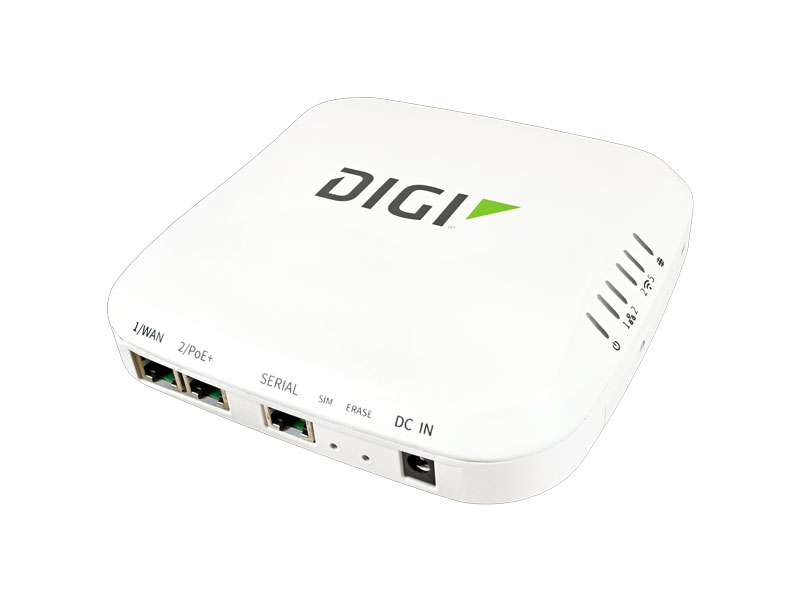

Digi EX50 – Global, 5G NR Sub-6 GHz with 4G/3G fallback, GNSS, Wi-Fi 6 2×2 MIMO DBS, dual 2.5 GbE, RS-232, with Accessories
Part Number: EX50-WX56-GLB
- Cellular connectivity:
- 5G NR: n1, n2, n3, n5, n28, n41, n66, n71, n78, n79; C-Band
- 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71; CBRS, LAA
- 3G HSPA+: B1, B2, B3, B4, B5, B6, B8, B9, B19
- Antenna connectors: (4) 50 Ω SMA (center pin: female)
- SIM slots: (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate
- Software and management:
- Software: Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable
- Remote management: Digi Remote Manager®, security, management, updates, alerts, scheduling and intelligence
- Local management: Web Interface (HTTPS); Command Line Interface (SSH, serial port)
- Performance:
- Ethernet throughput: 2.x Gbps
- Cellular throughput: 1.x Gbps
- IPsec VPN throughput: 500 Mbps
- VPN tunnels: 10 tunnels
- Client count: 50 clients (typical)
- Processor:
- Application processor: ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit
- Memory: 512 MB RAM, 512 MB flash
- Ethernet: (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)
- Wi-Fi:
- Radios: Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2×2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax
- Antennas: Integrated 2×2 MIMO, 2.4 and 5 GHz, 5 dBi gain
- Security: Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise
- Modes: (4) Wi-Fi Access Points; (2) Wi-Fi Clients
- Location: GNSS; L1: GPS, GLONASS, Galileo, QZSS, BeiDou; L5: GPS, Galileo, QZSS, BeiDou
- Serial: (1) RS-232 (RJ-45); Cisco Straight pinout; for out-of-band management of network, software selectable
- Operating temperature: -20° C to 70° C (-4° F to 158° F)
- Approvals: visit www.digi.com/resources/certifications for latest certifications
- Accessories: includes DC power supply, mounting hardware, Ethernet and serial cables
