Eon ADV-301-142D High Definition Digital (270Mhz to 5Ghz) Multiple Input Video Splitter

Part no: 20500-300

Eon ADV-301-142D High Definition Digital (270Mhz to 5Ghz) Multiple Input Video Splitter

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Eon ADV-301-142D High Definition Digital (270Mhz to 5Ghz) Multiple Input Video Splitter

Part Number: 20500-300

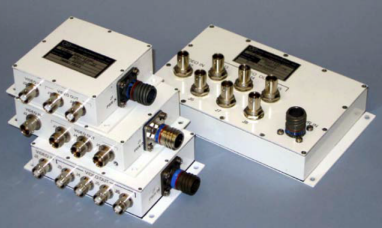

The ADV-301-142D is qualified to MilSpec Power, Environmental and EMI requirements. Power input of 16 – 40vdc is received through a MilStd D38999/20WB98PN connector. The unit consists of two banks of one in/four out video splitters. Each bank inputs one 3GHz SDI signal and distributes to four outputs through 75ohm BNCs. Each output is equalized to unity gain with respect to the input signal level. The unit supports 270Mbps, 1483/1485 and 2967/2970Mbps or automatic re-clocking rates.



Click here to download datasheet from Eon.
