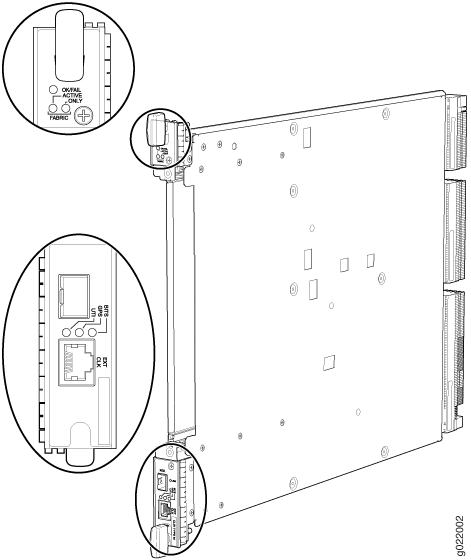

EX9200, Switch Fabric Module

Part Number: EX9200-SF

Switch Fabric modules (SF modules) are installed horizontally on the front panel of the switch chassis. You can install either one or two SF modules in an EX9204 or EX9208 switch and two or three SF modules in an EX9214 switch. A base-configuration EX9204 or EX9208 switch has only one SF module, and a base-configuration EX9214 switch has two SF modules.

Key Features

  • Chassis management Ethernet switch

  • I2C bus logic, used for low-level communication with each component

  • Component redundancy circuitry

  • Control Board/Routing Engine mastership mechanism

  • Gigabit Ethernet switch that is connected to the embedded CPU complex on all components
