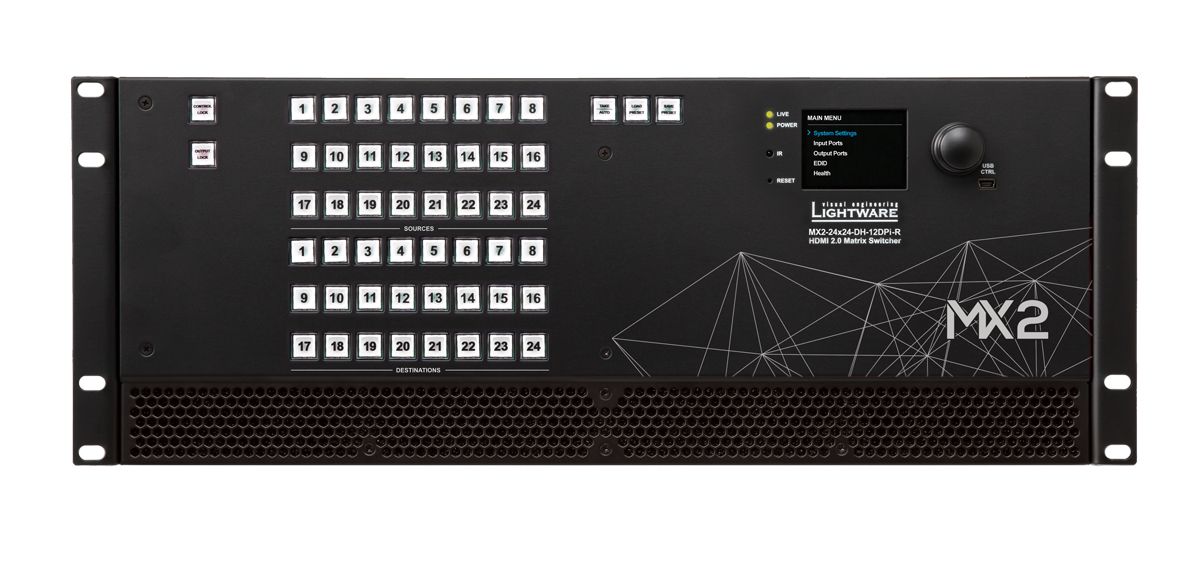

Lightware MX2-24×24-DH-12DPi-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports

Part Number: 91310067



MX2-24×24-DH-12DPi-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.



Highlighted Features

  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
  • Redundant power supplies available
  • High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)



Click here to download datasheet from Lightware.
