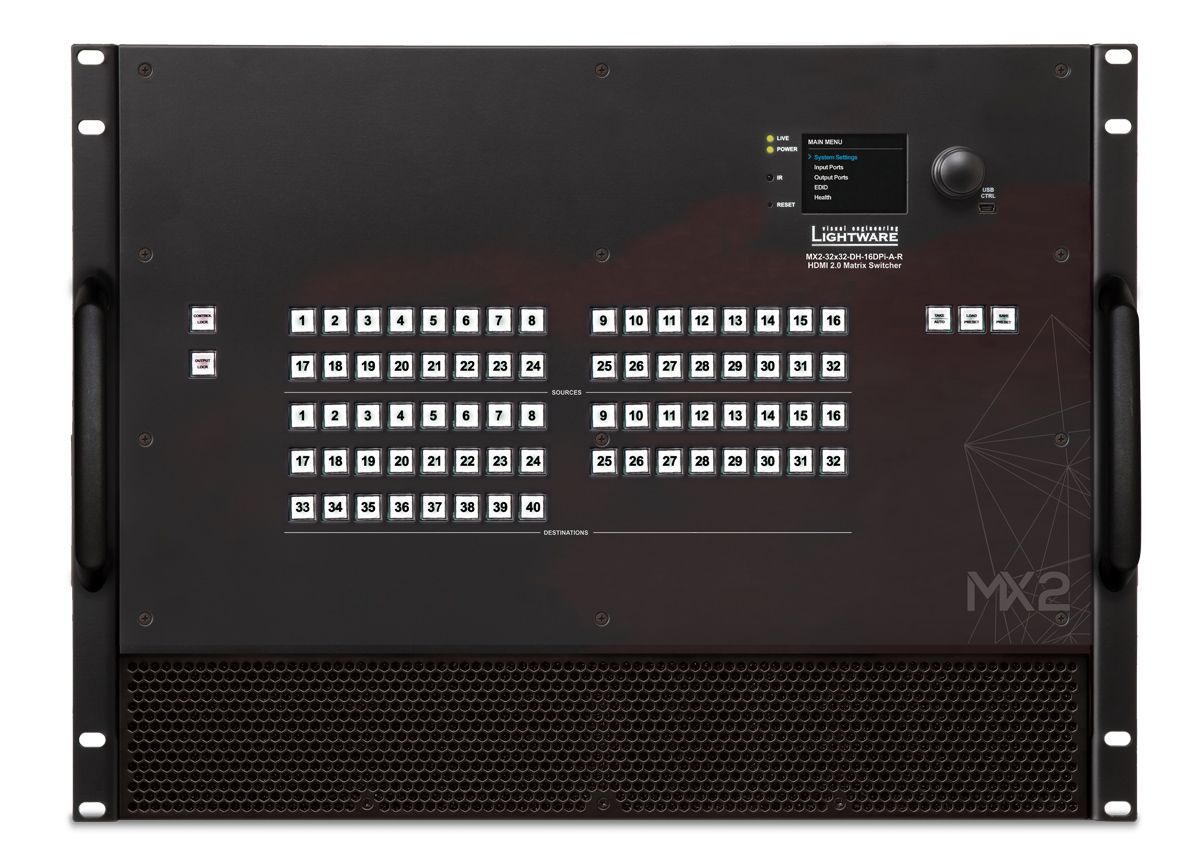

Lightware MX2-32x32-DH-16DPi-A-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports

Part no: 91310070

Lightware MX2-32×32-DH-16DPi-A-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Lightware MX2-32×32-DH-16DPi-A-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports

Part Number: 91310070



MX2-32×32-DH-16DPi-A-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.



Highlighted Features

  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDR and Low Latency Dolby Vision support
  • High bitrate Audio Support including Dolby Atmos, TrueHD, DTS-HD
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • No signal latency, zero frame delay



Click here to download datasheet from Lightware.
