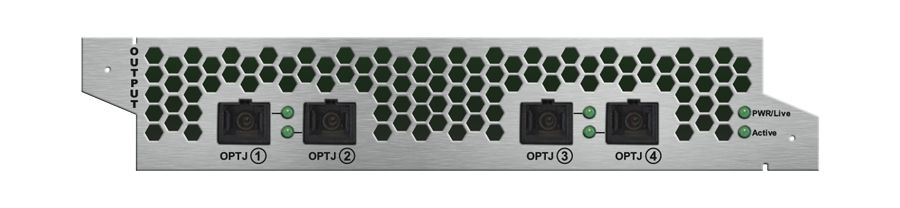

Lightware MX2M-4OPTJ-OB HDMI 2.0 Multimode Fiber Output Board

Part no: 91130054

Lightware MX2M-4OPTJ-OB HDMI 2.0 Multimode Fiber Output Board

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Lightware MX2M-4OPTJ-OB HDMI 2.0 Multimode Fiber Output Board

Part Number: 91130054



Highlighted Features

  • HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
  • DisplayID support for forcing extreme formats (e.g. 7kx1k@60Hz 4:4:4) from the connected source
  • Hot-swap support
  • Extension distance of up to 600 meters for 4k@60Hz 4:4:4 signals and 2500 meters for full HD signals
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • Advanced EDID Management
  • CEC support (command injection)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • No signal latency, zero frame delay



Click here to download datasheet from Lightware.
