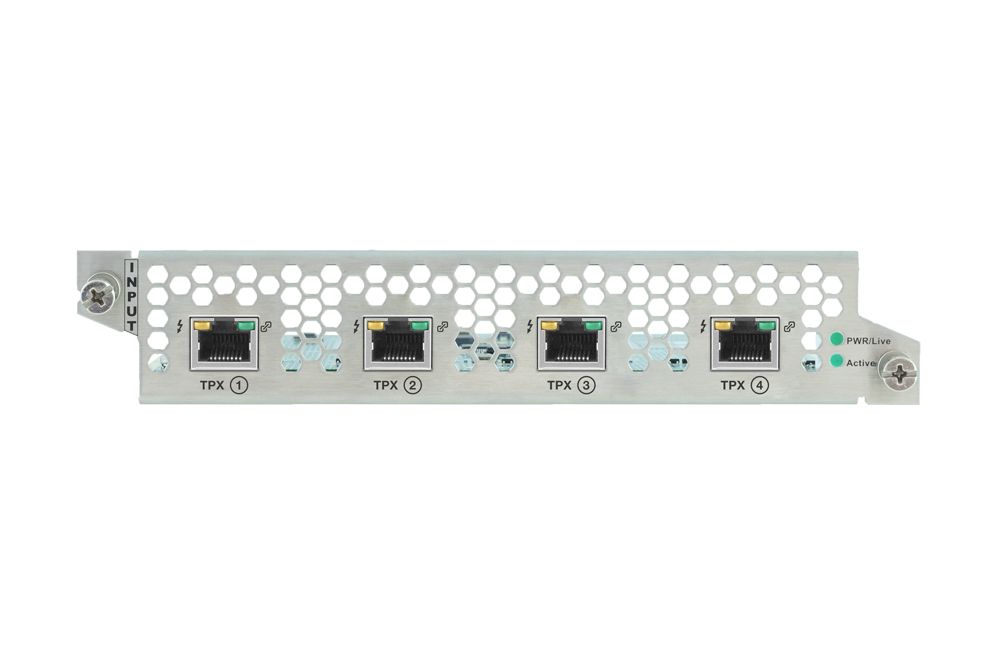

Lightware MX2M-4TPX-IB AVX (Non switchable) HDMI 2.0 Input Board

Part no: 91120050

Lightware MX2M-4TPX-IB AVX (Non switchable) HDMI 2.0 Input Board

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Lightware MX2M-4TPX-IB AVX (Non switchable) HDMI 2.0 Input Board

Part Number: 91120050



Featuring AVX technology, compatible with TPX and SDVoE compliant 3rd party transmitters.



Highlighted Features

  • HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
  • Hot-swap support
  • Pass-through of audio and de-embedding audio from the Audio layer including uncompressed or HBR formats
  • Extension distance of up to 100 meters for 4k@60Hz 4:4:4 signals
  • HDMI 2.0, HDMI 1.x, and DVI compatible
  • Support for low-latency Dolby Vision
  • Less than 0.1 ms signal latency
  • Compatible with TPX extenders and SDVoE based third party products
  • Advanced EDID Management
  • Command injection on RS-232 and IR ports
  • CEC support (command injection)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)



Click here to download datasheet from Lightware.
