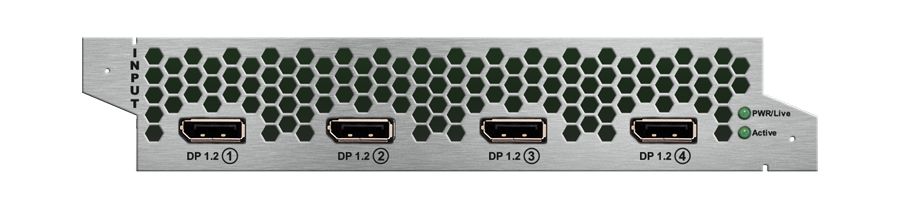

Lightware MX2M-DH-4DP12-IB DisplayPort 1.2 Input Board

Part no: 91120049

Lightware MX2M-DH-4DP12-IB DisplayPort 1.2 Input Board

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Lightware MX2M-DH-4DP12-IB DisplayPort 1.2 Input Board

Part Number: 91120049



Highlighted Features

  • Manual triggering of link training with forcing lane count and lane data rate
  • DisplayPort 1.2 compatible with 4-lane and HBR2/HBR/RBR support
  • HDCP 2.3 and HDCP 1.4 support with cross conversion capabilities
  • Pass-through and de-embedding of embedded audio including uncompressed (LPCM, DSD), compressed (MPEG 1 L1, MPEG 1 L2, MPEG 1 L3, AC-3, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Digital Surround EX, DTS, DTS ES)
  • Pass-through and de-embedding of embedded audio also including compressed HBR (Dolby Atmos, Dolby TrueHD, DTS-HD DA) formats
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)



Click here to download datasheet from Lightware.
