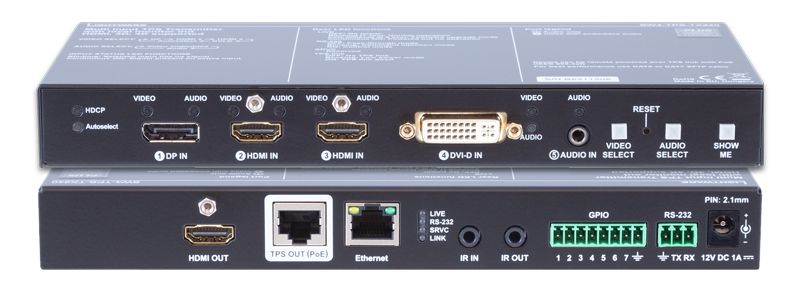

Lightware SW4-TPS-TX240-Plus TPS (HDBaseT™) Switcher and Transmitter for DisplayPort, HDMI and DVI with Local Monitor Out
Part Number: 91540065
SW4‑TPS‑TX240 is a flagship model in the Lightware TPS (HDBaseT™ Transmitter) product family. The device can transmit universal video, audio and control up to a 170 meter distance over a single CAT cable in dynamically changing environments such as small board rooms and classrooms. The extender was designed to handle HDMI 1.4 and DP 1.1 digital video signals and analog stereo audio from local inputs or HDMI or DP Embedded Audio up to eight Channel PCM or HBR audio.
Highlighted Features
- Cisco VC room integration compatibility
- Advanced control feature pack for 3rd party video conference collaboration
- Built-in Event Manager control automation feature
- 1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Extends DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
- Audio embedding (or replace original audio)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- GPIO control ports
- Bi-directional RS-232 and IR extension (pass-through and control)
