Lightware UCX-4x3-HC40-BD Universal Matrix Switcher with USB-C Connectivity and Dante USB Audio Bridge

Part no: 91310094

Lightware UCX-4×3-HC40-BD Universal Matrix Switcher with USB-C Connectivity and Dante USB Audio Bridge

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

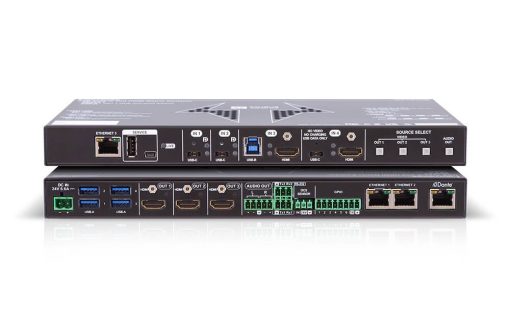

Lightware UCX-4×3-HC40-BD Universal Matrix Switcher with USB-C Connectivity and Dante USB Audio Bridge

Part Number: 91310094



Universal matrix switcher that exploits the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power providing meeting participants with easy host switching, utilizing data speeds of up to 5 Gbps under the USB 3.1 Gen1 providing video resolution capabilities up to 4K@60Hz at 4:4:4 as well as comprehensive and secure Ethernet features.



Highlighted Features

  • HDMI Stereo embedded Audio can be de-embedded and converted to 2 channel Dante/AES67 streams
  • Multiple USB 3.1 Gen 1 connectivity for any type of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc…)
  • USB-C input connectivity for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
  • CEC at the HDMI outputs
  • Passive, noiseless cooling
  • USB-C charging up to 100W (120W total)
  • Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
  • Dedicated secure corporate and room utility Ethernet connectivity
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)



Click here to download datasheet from Lightware.
