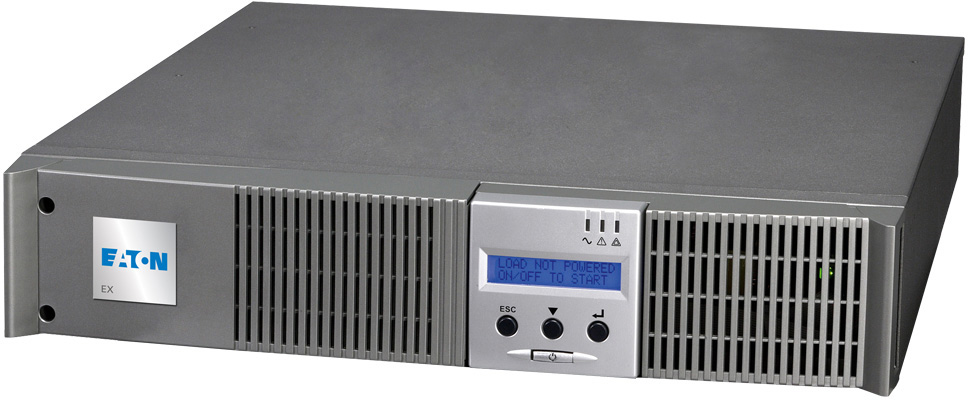

Eaton Pulsar EX 1000VA 2U Rackmount/Tower UPS
Part Number: M68182
Eaton is the second largest single-phase UPS manufacturer in the world, specialized in enterprise-class solutions. Its EX 1500 RT 2U is a high-performance UPS designed for harsh environments. Its double conversion, On Line UPS technology can ride through long lasting brownout conditions without draining the batteries while its high output provides typically 20% more power than comparable products.
Type
On-line
Wattage
900 W
VA rating
1,000 VA
Feature
With Display, Rack-mountable
Run time at full load
3 min at full load
Run time at half load
18 min at half load
General
Device Type
UPS – Power Factor Correction (PFC) – external
Height (Rack Units)
2U
Colour
Metallic grey
Power Device
Input Voltage
AC 100/120/140/160-284 V
Frequency Provided
50/60 Hz
Frequency Required
40 – 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
6 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240/250 V 50/60 Hz
Expansion / Connectivity
Interfaces
1 x management (USB) – 4 pin USB Type B 1 x RS-232 – 9 pin D-Sub (DB-9)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Rack Mounting Kit
Included
Features
LCD display, internal bypass, LED indicators
Compliant Standards
TUV GS, cUL, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, CSA C22.2, IEC 60950-1, EN 60950-1
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
45 dBA
Dimensions & Weight
Width
43.8 cm
Depth
48.3 cm
Height
8.7 cm
Weight
18 kg
