BEL POWER SOLUTIONS INC, 55W Embedded Switch Mode Power Supply SMPS, 5/±12V dc, U Bracket

Part no: MAP55-4002 | NSN: 6130-01-419-9900

BEL POWER SOLUTIONS INC, 55W Embedded Switch Mode Power Supply SMPS, 5/±12V dc, U Bracket

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

BEL POWER SOLUTIONS INC, 55W Embedded Switch Mode Power Supply SMPS, 5/±12V dc, U Bracket

Part Number: MAP55-4002

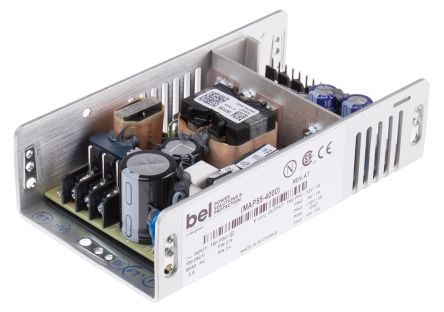

Bel Power Solutions MAP55 Series of power supplies provides reliable, tightly-regulated DC power for commercial and industrial systems. Wide-range AC input and full international safety, EMI, and ESD compliance ensure worldwide acceptance. All units bear the CE Mark.
The MAP55 utilizes a thermally efficient U-channel chassis design. Other mechanical design innovations include metric and SAE mounting inserts on each mounting surface to provide integration flexibility. Dual-mode connectors provide traditional terminal block connections or popular single row Molex connector mating.
Single-output models feature wide-range output adjustability to meet a wide variety of standard and user-specific output voltage requirements.

RoHS Compliant

Wide Range Input for 110/220 VAC Applications

Meets EN55022, Conducted Class B Limits

Compact Footprint: 6.0 x 3.27 x 1.6 inch (152.4 x 83.1 x 40.6 mm)

Greater than 225000 Hours MTBF

Metric and SAE Mounting Inserts
