SKU: 090-15200-650

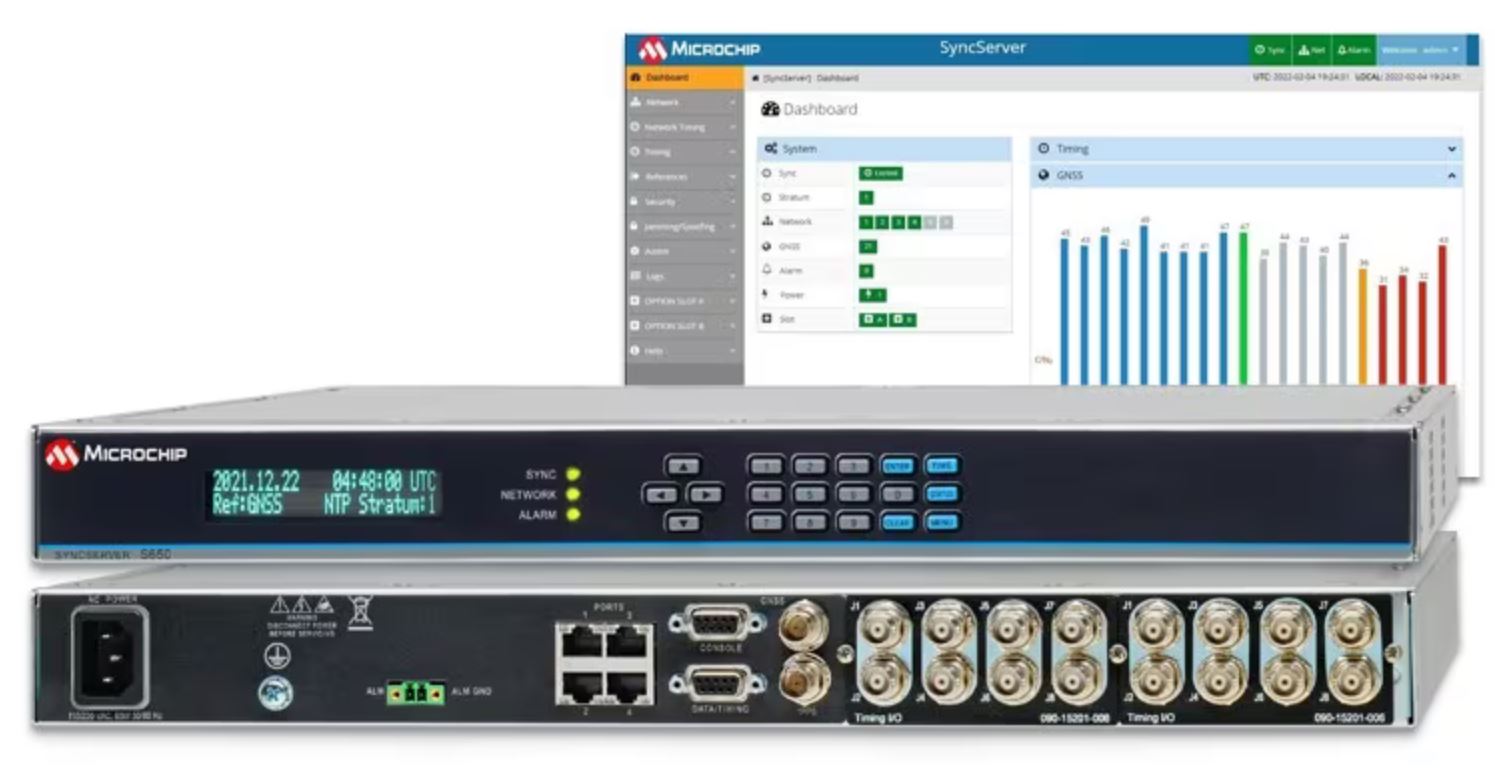

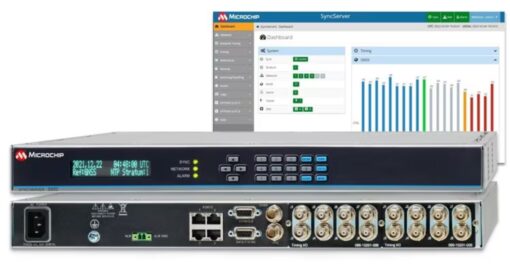

Microchip SyncServer® S650 Time and Frequency Instrument
Accurate, Secure and Flexible Time and Frequency
The SyncServer® S650 uses our FlexPort technology to provide unmatched synchronization flexibility and performance. The GNSS-referenced S650 is easily adaptable for modern instrumentation systems and networks that require best-in-class synchronization performance for a wide range of applications.
This modular time server combines the best of time and frequency instrumentation with unique flexibility and powerful network-based and security-hardened features. The timing output flexibility provides easy replication of precise and coherent output signals, eliminating the need for a signal distribution chassis.
Key Features
- < 15 ns RMS to UTC (USNO) through GNSS
- < 1 × 10–12 frequency accuracy
- Modular timing architecture with innovative FlexPort technology
- Popular timing signal inputs/outputs are standard in the base timing I/O module (IRIG B, 10 MHz, 1 PPS)
- Four GbE ports with NTP/PTP hardware timestamping, two additional 10 GbE ports optional
- Secure, hardened, web-based management
- –20°C to 65°C operating temperature, shock and vibration qualified
- Rubidium atomic clock or OCXO oscillator upgrade
- Additional timecode I/O including IRIG A/B/C37/E/G/NASA/2137/XR3/HaveQuick/PTTI available
- T1/E1 telecom I/O available
- Superior 10 MHz low phase noise options
- Galileo/GLONASS/BeiDou/SBAS/QZSS option
- PTP multi-port/profile output option
- S650i model with no GNSS
- DISA/DoDIN approved product
