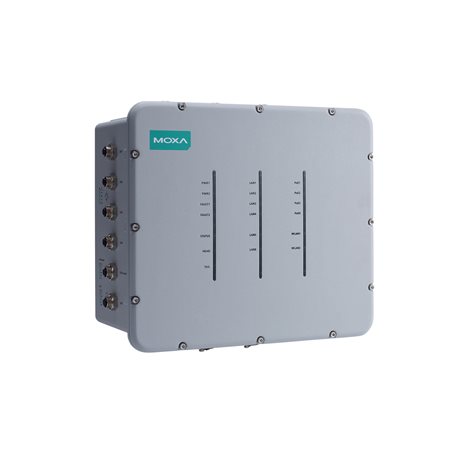

MOXA Cellular Router TAP-323-JP-CT-T
Part Number: TAP-323-JP-CT-T
TAP-323 Series Features and Benefits
2 dual-band radios, IEEE 802.11a/b/g/n compliant
Rugged IP68-rated housing and -40 to 75°C operating temperature
Controller-based Turbo Roaming (less than 50 ms)
2 fiber SFP slots and 4 PoE ports with M12 LAN connectors
Complies with all EN 50155 mandatory test items
Complies with EN 50121-4
Wireless network redundancy with AeroLink Protection
High transmission power for extended reach
The TAP-323 trackside wireless unit is designed for train-to-ground wireless communication. The TAP-323 is a highly compact and rugged wireless unit that integrates two access points, a managed fiber switch, and a wide-range AC/DC power supply into one box. The IP68 housing allows the unit to withstand harsh weather conditions, and the M12 connectors make the unit shock and vibration resistant. The TAP-323 supports advanced controller-based Turbo Roaming technology for train-to-ground wireless applications such as communication-based train control (CBTC) and CCTV. The unit can supply power to up to 4 PoE devices while providing reliable LAN communication with Moxa’s Turbo Chain technology.
WLAN Interface
Channel Bandwidth
5 MHz, 10 MHz, 20 MHz, 40 MHz
Frequency Band
5 GHz
2.4 GHz
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for JP (20 MHz operating channels)
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for US (20 MHz operating channels)
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (8 channels) Excludes 5.600 to 5.640
5.745 to 5.825 GHz (5 channels)
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -88 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -88 dBm @ MCS0 20 MHz
Typ. -85 dBm @ MCS1 20 MHz
Typ. -82 dBm @ MCS2 20 MHz
Typ. -79 dBm @ MCS3 20 MHz
Typ. -76 dBm @ MCS4 20 MHz
Typ. -71 dBm @ MCS5 20 MHz
Typ. -70 dBm @ MCS6 20 MHz
Typ. -69 dBm @ MCS7 20 MHz
Typ. -95 dBm @ MCS8 20 MHz
Typ. -91 dBm @ MCS9 20 MHz
Typ. -87 dBm @ MCS10 20 MHz
Typ. -80 dBm @ MCS11 20 MHz
Typ. -78 dBm @ MCS12 20 MHz
Typ. -74 dBm @ MCS13 20 MHz
Typ. -72 dBm @ MCS14 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -81 dBm @ MCS1 40 MHz
Typ. -77 dBm @ MCS2 40 MHz
Typ. -75 dBm @ MCS3 40 MHz
Typ. -71 dBm @ MCS4 40 MHz
Typ. -67 dBm @ MCS5 40 MHz
Typ. -64 dBm @ MCS6 40 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -90 dBm @ MCS8 40 MHz
Typ. -85 dBm @ MCS9 40 MHz
Typ. -82 dBm @ MCS10 40 MHz
Typ. -81 dBm @ MCS11 40 MHz
Typ. -77 dBm @ MCS12 40 MHz
Typ. -73 dBm @ MCS13 40 MHz
Typ. -71 dBm @ MCS14 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -93 dBm @ 1 Mbps
Typ. -93 dBm @ 2 Mbps
Typ. -93 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -88 dBm @ 6 Mbps
Typ. -86 dBm @ 9 Mbps
Typ. -85 dBm @ 12 Mbps
Typ. -85 dBm @ 18 Mbps
Typ. -85 dBm @ 24 Mbps
Typ. -82 dBm @ 36 Mbps
Typ. -78 dBm @ 48 Mbps
Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ MCS0 20 MHz
Typ. -85 dBm @ MCS1 20 MHz
Typ. -85 dBm @ MCS2 20 MHz
Typ. -82 dBm @ MCS3 20 MHz
Typ. -78 dBm @ MCS4 20 MHz
Typ. -74 dBm @ MCS5 20 MHz
Typ. -72 dBm @ MCS6 20 MHz
Typ. -70 dBm @ MCS7 20 MHz
Typ. -95 dBm @ MCS8 20 MHz
Typ. -90 dBm @ MCS9 20 MHz
Typ. -87 dBm @ MCS10 20 MHz
Typ. -83 dBm @ MCS11 20 MHz
Typ. -80 dBm @ MCS12 20 MHz
Typ. -74 dBm @ MCS13 20 MHz
Typ. -71 dBm @ MCS14 20 MHz
Typ. -69 dBm @ MCS15 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -83 dBm @ MCS1 40 MHz
Typ. -83 dBm @ MCS2 40 MHz
Typ. -80 dBm @ MCS3 40 MHz
Typ. -76 dBm @ MCS4 40 MHz
Typ. -73 dBm @ MCS5 40 MHz
Typ. -69 dBm @ MCS6 40 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -93 dBm @ MCS8 40 MHz
Typ. -88 dBm @ MCS9 40 MHz
Typ. -85 dBm @ MCS10 40 MHz
Typ. -82 dBm @ MCS11 40 MHz
Typ. -78 dBm @ MCS12 40 MHz
Typ. -73 dBm @ MCS13 40 MHz
Typ. -69 dBm @ MCS14 40 MHz
Typ. -67 dBm @ MCS15 40 MHz
Modulation Type
DSSS
OFDM
Transmission Rate
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15)
Transmitter Power for 802.11a
23±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 12 Mbps
23±1.5 dBm @ 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz)
23±1.5 dBm @ MCS0 20 MHz
20±1.5 dBm @ MCS1 20 MHz
20±1.5 dBm @ MCS2 20 MHz
20±1.5 dBm @ MCS3 20 MHz
19±1.5 dBm @ MCS4 20 MHz
18±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
20±1.5 dBm @ MCS9 20 MHz
20±1.5 dBm @ MCS10 20 MHz
20±1.5 dBm @ MCS11 20 MHz
19±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
18±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
18±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
19±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
18±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11b
26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
23±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 12 Mbps
23±1.5 dBm @ 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
23±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS1 20 MHz
21±1.5 dBm @ MCS2 20 MHz
21±1.5 dBm @ MCS3 20 MHz
20±1.5 dBm @ MCS4 20 MHz
19±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
21±1.5 dBm @ MCS9 20 MHz
21±1.5 dBm @ MCS10 20 MHz
21±1.5 dBm @ MCS11 20 MHz
20±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
19±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
17±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
20±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
17±1.5 dBm @ MCS15 40 MHz
Wireless Security
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
WLAN Antenna Connector
5 N-type female
WLAN Operation Mode
Access point
WLAN Standards
802.11a/b/g/n
802.11i Wireless Security
