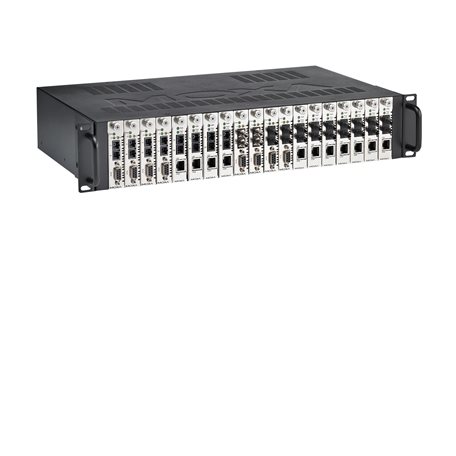

MOXA Ethernet Converter TRC-190-DC-48
Part Number: TRC-190-DC-48
TRC-190 Series Features and Benefits
19-inch chassis for rackmount use
19 slots for high-density applications
Supports dual power inputs with redundancy
Fanless chassis design reduces servicing costs
The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.
Power Parameters
Input Voltage
36 to 53 VDC
No. of Power Inputs
2
Overload Current Protection
Supported
Power Consumption
2.1 A @ 48 VDC
