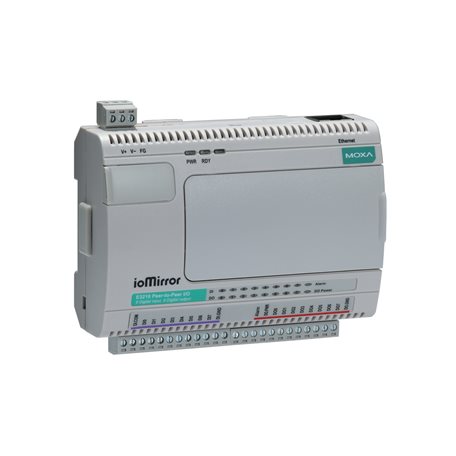

Moxa ioMirror E3210 Universal Peer-to-Peer I/O, 8 DIs, 8 DOs, -10 to 60°C operating temperature
The Moxa ioMirror E3210 is built to simplify the deployment of industrial monitoring and control systems. Its universal I/O design and Click&Go™ logic allow you to configure automated actions and monitoring behaviour without needing complex programming. The device supports a wide range of OT and IT communication protocols, making it easy to integrate into existing systems or new IIoT architectures.
Designed for applications such as energy monitoring, facility oversight, and machine-level OEM solutions, the ioMirror E3210 helps streamline data collection and control across distributed equipment. With built-in active monitoring capabilities, it provides reliable, real-time visibility and responsive control for industrial environments.
| Input / Output Interface | |
|---|---|
| Digital Input Channels | 8 |
| Digital Output Channels | 8 |
| Alarm Contact Channels | 1 |
| Isolation | 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Digital Inputs | |
| Connector | Screw-fastened Euroblock terminal |
| Digital Filtering Time Interval | Software configurable |
| Dry Contact | On: short to GND Off: open |
| I/O Mode | DI |
| Over-Voltage Protection | 36 VDC |
| Points per COM | 8 channels |
| Sensor Type | Dry contact, Wet Contact (NPN), Wet Contact (DI to GND) |
| Wet Contact Levels | On: 10 to 30 VDC Off: 0 to 3 VDC |
| Digital Outputs | |
| Connector | Screw-fastened Euroblock terminal |
| Current Rating | 200 mA per channel |
| I/O Mode | DO |
| I/O Type | Sink |
| Over-Current Protection | 0.6 A per channel @ 25°C |
| Over-Temperature Shutdown | 160°C (min.) |
| Over-Voltage Protection | 35 VDC |
| Ethernet Interface | |
| 10/100BaseT(X) Ports | 1 × RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Ethernet Software Features | |
| Configuration Options | Web Console (HTTP), Windows Utility (ioMirrorAdmin) |
| Industrial Protocols | Modbus TCP Server (Slave) |
| Management | BOOTP, DHCP Client, HTTP, TCP/IP, UDP |
| Time Management | SNTP |
| Modbus TCP Functions | 1, 2, 3, 4, 5, 6, 15, 16 |
| LED Interface | |
| LED Indicators | PWR, Ready |
| Power Parameters | |
| Power Connector | Screw-fastened Euroblock terminal |
| No. of Power Inputs | 1 |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 136 mA @ 24 VDC |
| Alarm Contacts | |
| I/O Type | Sink |
| Current Rating | Max. 200 mA per channel |
| Connector | Screw-fastened Euroblock terminal |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 115 × 79 × 45.6 mm |
| Weight | 205 g |
| Wiring | I/O cable 16–26 AWG, Power cable 16–26 AWG |
| Installation | Wall mounting, DIN-rail mounting |
| Environmental Limits | |
| Operating Temperature | -10 to 60°C |
| Storage Temperature | -40 to 85°C |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m Contact Moxa for higher-altitude requirements. |
| Standards & Certifications | |
| Freefall | IEC 60068-2-32 |
| EMI | EN 61000-6-4, FCC Part 15B Class A |
| Safety | UL 508 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | IEC 61000-4-2 (ESD): Contact 4 kV; Air 8 kV IEC 61000-4-3 (RS): 3 V/m IEC 61000-4-4 (EFT): Power 2 kV; Signal 1 kV IEC 61000-4-5 (Surge): Power 2 kV; Signal 1 kV IEC 61000-4-6 (CS): 10 V IEC 61000-4-8 (PFMF) |
| MTBF | |
| Time | 231,020 hrs |
| Standard | Telcordia SR332 |
| Warranty | |
| Warranty Period | 5 years |
| Details | www.moxa.com/warranty |
