OnLogic Fanless Industrial Intel Bay Trail Celeron Mini-ITX Computer
Part Number: ML400G-10
PERFORMANCE, EFFICIENCY, AND RELIABILITY COMBINED
The Intel Bay Trail Celeron J1900 processor at the heart of the ML400G-10 (part of the ML400 Series) is powerful enough to accommodate multiple displays and HD media in demanding applications including digital signage and HTPC applications. Cooled by the chassis heatsink, the ML400 series abolishes the traditional cooling fan which, when combined with a fast, reliable SSD, provides a fully solid state solution with no moving parts, further enhancing system reliability in vibration or impact-prone environments.
EASILY MOUNTABLE ANYWHERE
The fanless, ventless, and dust-resistant ML400G-10 system’s enclosure utilizes our Hardshell™ Fanless Technology to protect internal components from dust and debris in often contaminant-rich industrial environments like factories and shop floors. Built-in MIS-D 100 mm mounting, wall mount brackets, DIN Rail clips, and an available anti-vibration kit allow for simple, secure installation virtually anywhere. Whether mounted behind displays or beneath workstations to maximize available work space, this system has been engineered to perform reliably in a wide range of configurations, providing the ultimate in installation flexibility.
SMALL SIZE, MAJOR CONNECTIVITY OPTIONS
Ideal as an industrial monitoring system, factory workstation, or controller hub thanks to its wide array of versatile I/O, the ML400G-10 features 6 USB ports (including 2 USB 3.0), 4 COM ports, and dual Gb LAN. The systems is capable of interfacing with a variety of application and industry-specific devices including flow control monitors, network switches and HMI panels. HDMI, and VGA make the ML400G-10 capable of driving dual independent displays.
| SKU | ML400G-10 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Celeron J1900 |
| Processor Speed | 2.0 GHz |
| Max Burst Frequency (GHz) | 2.42 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Bay Trail |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 16 GB |
| Memory Speed | 1333 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |

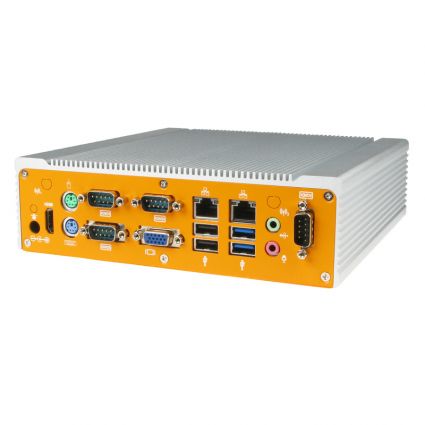

| Rear I/O | 1 HDMI port 1 VGA port 2 Gb LAN ports 3 COM ports (RS-232/422/485) 1 COM port (RS-232) 2 USB 3.2 Gen 1 ports 2 USB 2.0 ports 2 PS/2 ports 2 Audio jacks: line-out, mic-in 1 DC jack |
| Front I/O | 2 USB 2.0 ports Power Button |
| Expansion Options | 1 Half-height mPCIe slot |
| Storage Options | mSATA |
| LAN Controller | Realtek RT8111G-CG |
| Input Voltage | 9 ~ 19 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 196 x 57 x 202 mm 7.71″ x 2.24″ x 7.95″ |
| Case Type | Customizable Fanless Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Rubber Mounting Feet DC Jack Retaining Clip |
