OnLogic Fanless Industrial Intel Bay Trail Computer
Part Number: ML210G-10
THE HEART OF YOUR APPLICATION
Powered by Intel’s J1900 Celeron processor, the ML210G-10 (part of the ML200 Series) strikes the perfect balance between energy efficiency (consuming less than 20 watts) and processing power. Unlike previous generations of energy-efficient systems that struggled with HD and processor-intensive applications, this fanless system can tackle more than just simple embedded computing tasks. With an excellent performance to size ratio and plenty of thermal overhead at the system’s 55°C operational ceiling, the ML210G-10 can scale to a variety of application needs.
THE PINNACLE OF FANLESS TECH
Built to last, the ML210G-10 combines robust, multimedia-capable processing power with a ruggedized, fanless and ventless enclosure that protects the system against the rigors of industrial environments. Where traditional desktops fail, the ML210G-10 thrives, thanks to our unique Hardshell™ Fanless Technology, which shrugs off dust, metal shavings, or other debris that are common hazards on factory floors. A fully solid state solution, this computer forgoes even a fan, eliminating a point of failure and relying on the superior design of the integrated heatsink to keep the system cool.
FORM, FUNCTION, AND FIT

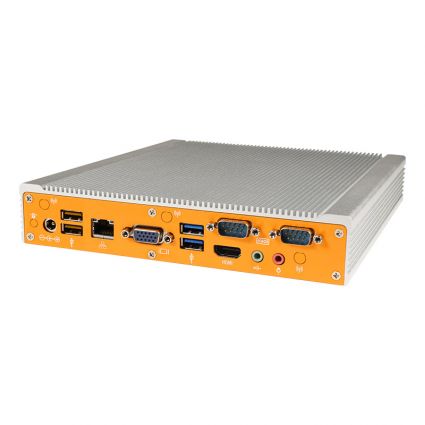

Despite its small size, the ML210G-10 offers an array of connectivity, including VGA and HDMI capable of powering dual independent displays, Gb LAN, dual COM ports, and six USB ports (including two on the front and two USB 3.0 on the back). In addition to reliable, solid state storage, the system also offers a PCIe Mini Card slot for Wi-Fi and Bluetooth connectivity. To protect the system in environments with fluctuating power, the ML210G-10 offers a wide, 8~19 V DC input, and its small size makes it easy to mount under a work bench or behind a monitor using either the built-in VESA MISD-100 mounting holes or the available bracket kits.
| SKU | ML210G-10 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Celeron J1900 |
| Processor Speed | 2.0 GHz |
| Max Burst Frequency (GHz) | 2.42 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Bay Trail |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1333 MHz 1066 MHz |
| Number of Displays Supported | 2 |
| Rear I/O | 2 USB 2.0 high current ports 2 USB 3.2 Gen 1 ports 2 RS-232 COM ports 1 VGA port 1 HDMI port 1 Gb LAN port 2 Audio jacks 1 DC jack (8 V to 19 V) |
| Front I/O | 2 USB 2.0 ports Power button |
| Expansion Options | 1 PCIe Mini Card (full height) 1 Half-height mPCIe slot |
| Storage Options | mSATA |
| LAN Controller | Realtek RT8111G-CG |
| Input Voltage | 8~19 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 55°C |
| Dimensions (WxHxD) | 196 x 37 x 213 mm 7.7″ x 1.45″ x 8.4″ |
| Case Type | Compact Customizable Fanless |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Serial 3 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Rubber mounting feet DC Jack Retaining Clip |
