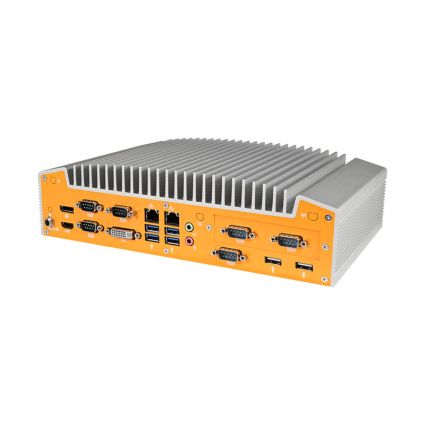

OnLogic Fanless Industrial Intel Haswell Computer
Part Number: ML600G-50
FANLESS CHASSIS, WORKSTATION PERFORMANCE
Offering desktop class Intel Haswell performance in an innovative fanless, ventless chassis, the ML600G-50 (part of the ML600 Series) is the ideal workstation for manufacturing installations. Featuring up to a Quad-Core i7 processor in a precision engineered enclosure designed to optimize thermal performance using our innovative Hardshell™ Fanless Technology, this computer takes fanless computing to the next level. Integrated Intel 4000 series graphics and up to 16 GB of RAM give the ML600G-50 the capabilities to handle any industrial computing workload.
THE PEAK OF FANLESS EXPANDABILITY
The ML600G series chassis integrates expandability in a way never before seen in fanless computing, with the I/O Flex Bay allowing for easy integration of third party I/O or additional wireless capability with only minor customization. The chassis itself features ample room for Hot-Swap storage bays and additional I/O and COM ports. All of these features come without sacrificing thermal performance or wasting valuable work space, ensuring system reliability and enabling installation virtually anywhere.
KITCHEN SINK NOT INCLUDED
Don’t compromise the connectivity of your fanless computer. The ML600G-50’s arsenal of I/O is enough to handle any job, including 6 RS-232 COM ports (3 of which support RS-422/485, as well), 8 USB, DVI secure video out and an optional dual 2.5″ Hot Swap bay. Also onboard are dual Gigabit Ethernet and optional 802.11ac internal wireless. Plus, the ML600G-50 supports three independent displays, ideal for video wall and digital signage applications.
| SKU | ML600G-50 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor Socket | LGA1150 |
| Processor Generation | Haswell |
| Chipset | Intel Q87 |
| Graphics/GPU | Intel 4th Generation HD Graphics |
| Memory Type | DDR3 SO-DIMM (non-ECC) |
| Memory Capacity | 16 GB |
| Memory Speed | 1600 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 1 HDMI port 1 DisplayPort 1 DVI-I port 4 USB 3.2 Gen 1 ports 2 USB 2.0 ports 2 Gb LAN ports 3 RS-232/422/485 COM ports 3 RS-232 COM ports 2 Audio jacks; line-out, mic-in 1 DC Jack |
| Front I/O | 2 USB 2.0 ports Power Button |
| Storage Options | 2.5″ HDD/SSD 2.5″ Hot-swap HDD/SSD mSATA |
| RAID Support | 0 1 1+0 5 |
| LAN Controller | Intel I210 GbE Intel I217LM GbE with Intel AMT |
| Included Power Supply | 160 Watt picoPSU |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 187 x 79 x 290mm 7.3″ x 3.1″ x 11.4″ |
| Case Type | Customizable Fanless Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Rubber feet DC Jack lock |
