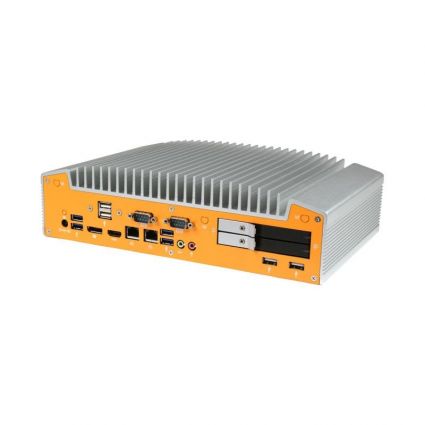

OnLogic Fanless Industrial Intel Haswell Computer with Hot Swap

Part Number: ML600G-30

DO MORE, FANLESS

The ML600G-30 (part of the ML600 Series) is ideally suited for a wide range of industrial computing applications including security & surveillance, data acquisition and industrial control. Featuring up to a Quad-Core i7 processor in a precision engineered enclosure that ensures optimal thermal performance thanks to our unique Hardshell™ Fanless Technology, the ML600G-30 offers Intel Haswell desktop performance in a compact, easy to integrate footprint. Intel 4000 series graphics and up to 16 GB of RAM give the system the capabilities to handle any industrial computing task.



ULTIMATE VERSATILITY

The ML600G-30 chassis features dual Hot-Swap storage bays and a versatile selection of industrial I/O. The system’s unique I/O Flex Bay allows for integration of third party I/O and the ability to add additional wireless capability with only minor customization. All of these features come while maintaining peak thermal performance while the small form factor preserves valuable work space, ensuring system reliability and enabling the ML600G-30 to be installed exactly where you need it.



COMMUNICATIONS SPECIALIST

Don’t settle for inflexible fanless computers with limited connectivity. The ML600G-30’s array of I/O is enough to handle any job, including 2 COM, 10 USB, DisplayPort and a standard dual 2.5″ Hot Swap bay. Also onboard is dual Gigabit Ethernet and optional 802.11ac internal wireless. Plus, dual digital video out makes the ML600G-30 ideal for multi-screen video wall and digital signage applications.



SKU ML600G-30
Hardware Line Fanless Industrial
Cooling Type Fanless
Processor Socket LGA1150
Processor Generation Haswell
Chipset Intel Q87
Graphics/GPU Intel 4th Generation HD Graphics
Memory Type DDR3 SO-DIMM (non-ECC)
Memory Capacity 16 GB
Memory Speed 1600 MHz
Memory Slot Count 2.000000
Number of Displays Supported 2
Rear I/O 1 DisplayPort
1 HDMI port
2 Gb LAN ports (1 with iAMT support)
4 USB 3.2 Gen 1 ports
2 RS-232 COM ports
4 USB 2.0 ports
2 Audio jacks: line-out, mic-in
1 DC jack
Front I/O 2 USB 2.0 ports
Power Button
Storage Options 2.5″ HDD/SSD
2.5″ Hot-swap HDD/SSD
mSATA
RAID Support 0
1
1+0
5
LAN Controller Intel I210 GbE
Intel I217LM GbE with Intel AMT
Input Voltage 12~19 VDC
Power Input DC jack
Operating Temperature Range 0 ~ 50°C
Dimensions (WxHxD) 187 x 79 x 290mm
7.3″ x 3.1″ x 11.4″
Case Type Customizable
Fanless
Modular
Case Material Aluminum
Steel
Port Punchouts 3 Antenna holes
Mounting Options DIN-mount
VESA-mount
Wall-mount
Included Accessories Rubber feet
DC Jack lock
