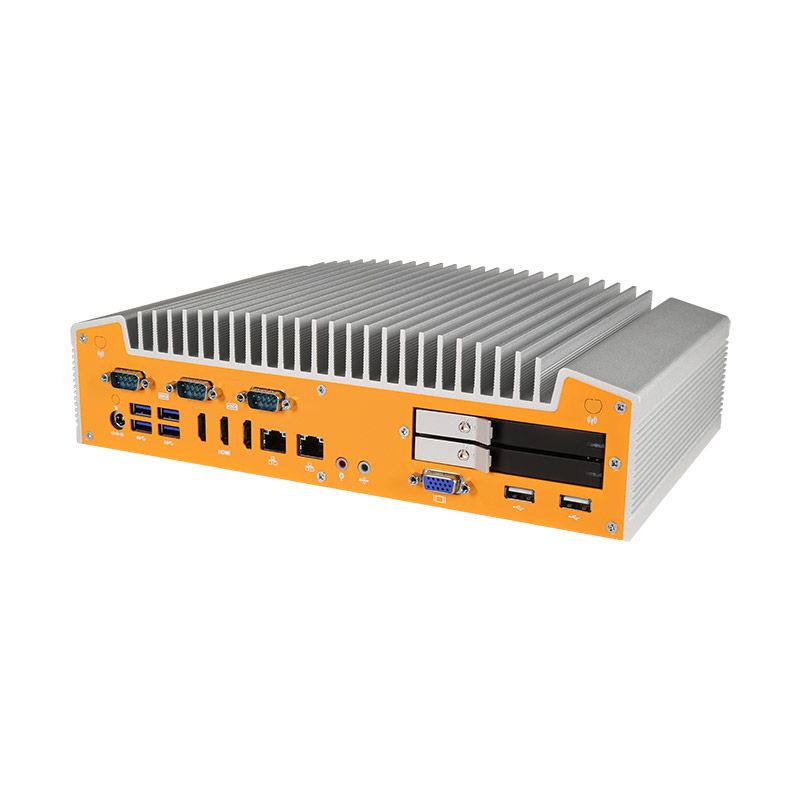

OnLogic Fanless Industrial Intel Skylake Computer
Part Number: ML600G-52
HARNESSING THE POWER OF SKYLAKE
The ML600G-52 is both highly versatile and extremely efficient, with support for a range of Intel’s 6th generation Skylake processors. Configurable with CPUs ranging from an efficient Celeron, to Intel’s flagship Core i7, the ML600G-52 is an incredibly capable and versatile computing platform. With improved graphics capabilities and a range of performance boosts, Intel’s 6th generation Skylake processors give the ML600G-52 the advanced capabilities to tackle any computing challenge. Ideal for today’s cutting edge embedded projects, manufacturing facilities or any processing intensive application, the ML600G-52 is the right tool for virtually any job.
THE PROTECTION OF HARDSHELL FANLESS
The ML600G-52 has been engineered using our Hardshell™ Fanless Technology, which utilizes an all metal, fanless and ventless enclosure designed for the rigors of industrial environments. Internal components are protected from dust, airborne contaminants and even chemical and moisture ingress, as well as shock and vibration, all of which can have devastating effects on sensitive electronics. The strikingly unique finned enclosure provides efficient and effective cooling of internal components without the need for failure prone fans or venting.
CONNECTED AND PROTECTED
Today’s Industry 4.0 applications demand a wide array of connectivity to both modern and legacy equipment. In addition to 4 USB 3.0, the ML600G-52 also offers 3 HDMI ports for triple independent display, 3 COM, dual Gb LAN and even VGA, ideal for interfacing with existing tooling, devices or machinery. For storage intensive applications, the ML600G-52 provides dual hot swap bays. Should a hard drive fail or need to be changed out, the system doesn’t need to be powered down, preventing downtime and increasing overall operational efficiency.
SKU | ML600G-52 |
---|---|
Hardware Line | Fanless Industrial |
Cooling Type | Fanless |
Processor Socket | LGA1151 |
Processor Generation | Skylake |
Chipset | Intel Q170 |
Graphics/GPU | Intel HD Graphics 510 Intel HD Graphics 530 (Processor Dependent) |
Memory Type | DDR4 SO-DIMM (non-ECC) |
Memory Capacity | 32 GB |
Memory Speed | 2133 MHz |
Memory Slot Count | 2.000000 |
Number of Displays Supported | 3 |
Rear I/O | 3 HDMI ports 2 Gb LAN ports 4 USB 3.2 Gen 1 ports 2 RS-232/422/485 COM ports 1 RS-232 COM port 1 VGA port 2 USB 2.0 ports 2 Audio jacks; line-out, mic-in |
Front I/O | 2 USB 2.0 ports 1 Power button |
Expansion Options | 1 PCIe Mini Card (full height) 1 Half-height mPCIe slot |
Storage Options | Dual 2.5″ Hot-swap HDD/SDD mSATA |
RAID Support | 0 1 |
LAN Controller | Intel I210 GbE Intel I219LM GbE |
System Monitoring | Watchdog Timer |
Input Voltage | 12 VDC / 19~24 VDC |
Power Input | DC jack |
Operating Temperature Range | 0 ~ 50°C |
Dimensions (WxHxD) | 187 x 79 x 290mm 7.3″ x 3.1″ x 11.4″ |
Case Type | Customizable Fanless Modular |
Case Material | Aluminum Steel |
Port Punchouts | 2 Antenna holes |
Mounting Options | DIN-mount VESA-mount Wall-mount |
