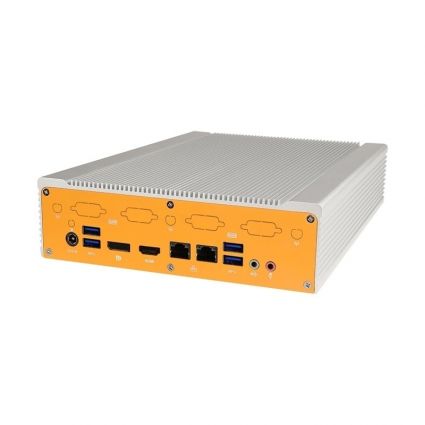

OnLogic Fanless Industrial Intel Skylake Mini-ITX Customizable Computer
Part Number: ML450G-52
CONTINUOUS IMPROVEMENT
The ML450G-52 offers excellent performance per watt, a 40% increase over previous generation CPUs with options for Intel’s 6th generation of processors. You can choose from Celeron, Pentium, or Core i3/i5 CPUS, allowing you to hone in the level of performance and power consumption that you want. Intel’s Skylake processors allow for up to 32GB of DDR4 memory which offers a 20% power savings and increased performance over the previous generation DDR3 memory.
PEACE OF MIND
The ML450G-52 offers ultra-reliable, high performance computing, in a hardened aluminum case that utilizes OnLogic’s Hardshell™ Fanless Technology, which keeps the sensitive components of the system protected. The fanless nature of the case means that the ML450G-52 is protected from dust, airborne debris, and chemical or moisture ingress, all of which could spell disaster for a typical fanned system. Use of solid state drives, along with the exclusion of fans, means that there are no moving parts, giving the ML450G-52 greatly improved shock and vibration resistance and vastly extending the expected lifespan of the system. Designed for reliability, the ML450G-52 gives you the peace of mind to know that your system is ready for 24/7 operation.
INCREDIBLE FUNCTIONALITY
The ML450G-52 has a wide range of I/O which allows it to be implemented in numerous industrial applications. The I/O coastline includes 6 USB ports (4 of them are USB 3.0), 4 optional COM ports, and up to 4 Gbe LAN ports (2 included, 2 optional) which allow you to easily connect to both peripherals and systems old and new. Additionally, the ML450G-52 has 1 DisplayPort and 1 HDMI port which allow it to support dual HD displays with resolutions up to 4K. Supporting wall, DIN, and VESA mounting, as well as two PCIe Mini Card slots, one full-height, and one half-height for Wi-Fi and Bluetooth integration, the ML450G-52 can be connected no matter where it is installed. All these factors come together to create a system that perfectly balances performance, industrial design, and connectivity.
| SKU | ML450G-52 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Processor Cores | 2 |
| Chipset | Intel Q170 |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 1 HDMI port 1 DisplayPort 2 Gb LAN ports 4 USB 3.2 Gen 1 ports 2 Audio jacks; line-out, mic-in 4 Additional RS-232 COM ports (optional) 2 Additional Gbe LAN ports (optional) |
| Front I/O | 2 USB 2.0 ports Power button |
| Expansion Options | 1 PCIe Mini Card (full height) 1 Half-height mPCIe slot |
| Storage Options | 2.5″ HDD/SSD |
| RAID Support | 0 1 |
| LAN Controller | Intel I210 GbE Intel I219 GbE |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 45°C |
| Dimensions (WxHxD) | 196 x 57 x 270 mm 7.71″ x 2.24″ x 10.6″ |
| Case Type | Customizable Fanless Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
