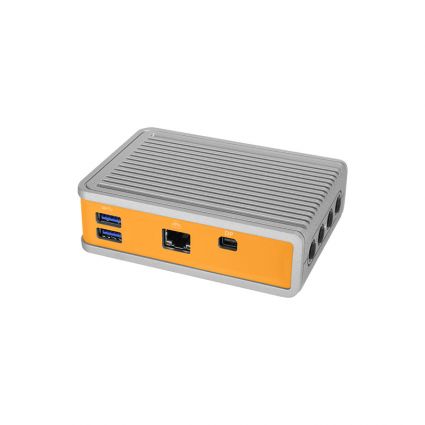

OnLogic Industrial Edge Device with Dual-Core Intel Celeron N3350
Part Number: CL200G-11
ECONOMICAL AND RELIABLE
The CL200G-11 is an ultra small form factor fanless gateway designed for the IoT Edge.Based on the stable Linux platform, the system is equipped with the efficient Intel Celeron N3350 processor and 1GB of LPDDR4 memory that can easily connect your devices and sensors to the cloud. The CL200 also features Intel Platform Trust Technology (PTT), a firmware alternative to TPM that meets TPM 2.0 standards to keep your system secure.
SET IT AND FORGET IT
The CL200G-11’s industrial-grade Hardshell Fanless Technology sets it apart from other drop in gateway solutions, but also protects the system from dust, debris, chemical, and moisture ingress. Its unique cast aluminum chassis efficiently dissipates heat while allowing for space-saving mounting options such as VESA, wall, and DIN rail mounting.
EASY TO CONNECT
Every side of the system is utilized for I/O. The front and bottom include two USB 3.0 ports, one Gb LAN port, one mini-DisplayPort, one USB 2.0 port, and a 9 pin RS-232 box connector COM port. Despite its diminutive size, the CL200G-11 has the level of expansion found on larger boards with two mPCIe slots (one full-height, one half-height) for Wi-Fi and mPCIe expansion cards. An mSATA slot (shared with the full-height mPCIe) or microSD card slot on the back gives you additional options when it comes to storage.
Bronze Award Winner For Product Innovation – IMTS 2018
“The CL200 is essentially an industrial grade single-board computer (SBC). SBCs like BeagleBones and Raspberry Pis are commonly used for sensor implementation and for the optimization of data collection on industrial equipment, whether it’s for academic purposes or to aid a factory in attempt to achieve World Class OEE. SBCs are often physically fragile and lacking in computational capability. OnLogic solves this issue by offering a more powerful SBC with substantial memory and protective enclosure with multiple mounting and placement options.” Â Â ~IMTS Awards Committee
| SKU | CL200G-11 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Celeron N3350 |
| Processor Speed | 1.1 GHz |
| Max Burst Frequency (GHz) | 2.4 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Apollo Lake |
| Processor Cores | 2 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 500 |
| Memory Type | LPDDR4 |
| Memory Capacity | 1 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 1 |
| Rear I/O | 1 MicroSD Card slot 1 Power Button 1 Power Indicator LED 1 COM port (RS-232) 1 USB 2.0 port 1 DC input jack (12 V) |
| Front I/O | 2 USB 3.2 Gen 1 ports 1 mini-DisplayPorts 1 Gb LAN ports |
| Expansion Options | 1 Full size mPCIe slot (shared with mSATA) 1 Half-height mPCIe slot |
| Included Storage | Onboard eMMC Storage Not Included |
| Storage Options | MicroSD Card 1 mSATA slot (shared with full size mPCIe slot) |
| LAN Controller | Realtek RTL8111G |
| Included Power Supply | Power Adapter AC/DC 12 V, 36 W – with Interchangeable Plug |
| System Monitoring | PTT in BIOS Watchdog Timer |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 40°C |
| Dimensions (WxHxD) | 34 mm x 115 mm x 82 mm 1.34″ x 4.53″ x 3.23″ |
| Case Type | Compact Customizable Fanless |
| Case Material | Cast Aluminum Steel |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
