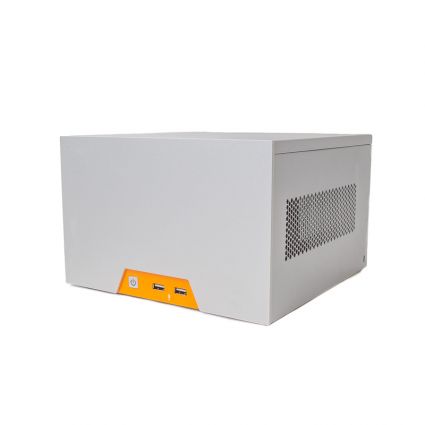

OnLogic Industrial Intel Coffee Lake Xeon E Edge Server
Part Number: MC850-54
HIGH PERFORMANCE POSSIBILITIES
The MC850-54 utilizes the Intel C246 chipset which brings with it the latest Coffee Lake Core i up to Xeon level processing and ECC memory for critical applications. Room for full-height expansion cards allow for flexible configuration options for workstation or server functionality.
INDUSTRIAL DESIGN
The MC850-54 was designed for high-performance components without sacrificing functionality in a compact industrial form factor. A rear-mounted fan provides an optimized “V” pattern airflow to ensure efficient, full-system cooling over thermally sensitive components enabling for reliable performance even under a heavy computing load. Corrosion-resistant galvanized steel and anodized aluminum construction make the MC850 well suited for a wide range of industrial computing installations.
The MC850-54 eliminates the need for bulky external power adapters with a direct plug-in integrated 300W PSU, making installation clean and easy.
A VERSATILE PERFORMER
The MC850-54 is a flexible cross between server and desktop oriented features and I/O. Connect up to three independent displays with DisplayPort, HDMI, and VGA – a rarity for most server-grade pedigrees. Four USB 3.1 Gen2 ports (with four additional USB 2.0 ports for a total of 8 USB ports) bring high-speed connection, while an M.2 NVMe 22×42 slot provides blazing fast storage. The system supports up to four SATA3 drives, making it an attractive mini-server option when paired with NCSI, Wake-On-LAN, and PXE.
| SKU | MC850-54 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor Socket | LGA1151 |
| Processor Generation | Coffee Lake |
| Processor Cores | 2 4 6 |
| Chipset | Intel C246 |
| Memory Type | DDR4 ECC UDIMM |
| Memory Capacity | 32 GB |
| Memory Speed | 2400 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 1 HDMI port 1 DisplayPort connector 1 VGA port 2 USB 2.0 ports 4 USB 3.2 Gen2 ports 2 Gb LAN ports 3 Audio jacks (Line In; Front; Min In) 1 Optical SPDIF audio port |
| Front I/O | 2 USB 2.0 ports Power Button |
| Expansion Options | 1 PCIe x16 slot |
| Storage Options | 2 SATA 6 Gb/s 1 M.2 22×42 PCIe x4 slot |
| LAN Controller | Intel I210 GbE Intel I219LM GbE |
| System Monitoring | Wake on LAN Watchdog Timer |
| Input Voltage | 100 ~ 240 V AC |
| Power Input | C13 ~ C14 Coupler |
| Operating Temperature Range | 10 ~ 35°C |
| Dimensions (WxHxD) | 230 x 146 x 241.5 mm 9.06″ x 5.75″ x 9.51″ |
| Case Type | Customizable Expandable Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | Wall-mount |
