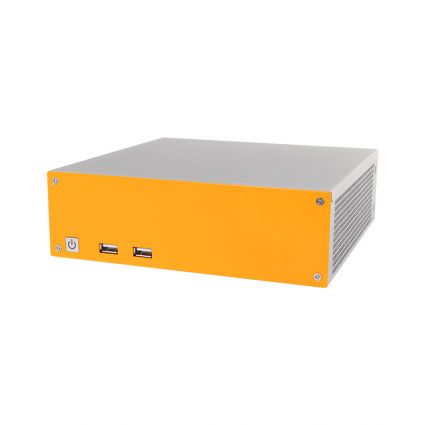

OnLogic Industrial Intel Core Mini-ITX Computer
Part Number: MC500-50
EMBEDDED DONE RIGHT
Perfectly balance horsepower and energy-efficiency with Intel Haswell Mobile processing. Ideal for commercial deployments requiring HD capable performance, the MC500-50 (part of the MC500 Series) features Intel’s 4th Generation Core i processors paired with the advanced embedded QM87 chipset. Supporting up to 16 GB of RAM and advanced features, including triple independent display and Intel vPro for remote support, this system perfectly compliments the most demanding applications.
DURABILITY, VERSATILITY, SUPERIORITY
Designed with embedded commercial applications in mind, the MC500-50 is enclosed in a sleek, scratch-resistant, all-metal enclosure that looks equally at home on a desktop or in a warehouse. The cross-case ventilation is optimized for low noise and reliable, 24/7 operation, and the entire chassis works to eliminate EMI and ensure effective heat conduction. The included mounting brackets make the MC500-50 easy to securely install on any vertical or horizontal surface for peace of mind and ease of use.
THE HUB OF YOUR APPLICATION
With a wide array of industrially-focused I/O, the MC500-50 is uniquely suited to commercial and embedded deployments requiring a large amount of connectivity or peripherals. Dual Gb LAN (including Intel vPro support), dual RS-232/422/485 COM, 6 USB (including four USB 3.0 ports), and triple independent display support over HDMI, two DisplayPorts, or VGA enable the MC500-50 to address just about any computing challenge. A PCIe Mini Card slot and mSATA SSD slot round out the offering, enabling expansion or wireless connectivity.
| SKU | MC500-50 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor Socket | G3 (rPGA947) |
| Processor Generation | Haswell |
| Chipset | Intel QM87 |
| Graphics/GPU | Intel 4th Generation HD Graphics |
| Memory Type | DDR3 SO-DIMM (ECC) |
| Memory Capacity | 16 GB |
| Memory Speed | 1600 MHz 1333 MHz 1066 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 1 HDMI port 2 DisplayPort 1 VGA port 4 USB 3.2 Gen 1 ports 2 Gb LAN ports 2 RS-232/422/485 COM ports 2 Audio jacks; line-out, mic-in |
| Front I/O | 2 USB 2.0 ports Power Button |
| Expansion Options | 1 PCIe x16 slot 1 PCIe Mini Card (full height) |
| Storage Options | 2.5″ HDD/SSD mSATA |
| LAN Controller | Intel I210 GbE Intel I217LM GbE with Intel AMT |
| Onboard Connectors | 8 USB ports via 4 pin headers 1 Internal USB port 4 RS-232 COM headers 1 8-bit GPIO header 1 Parallel port header 1 TPM header 1 LVDS pin header (24-bit, dual channel) |
| System Monitoring | Watchdog Timer |
| Input Voltage | 12~19 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 192.6 x 59.3 x 198.1 mm 7.6″ x 2.35″ x 7.8″ |
| Case Type | Compact Customizable Modular |
| Case Material | Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | 80 W AC adapter with cord Wall mounting brackets Screws Adhesive foot pads |
