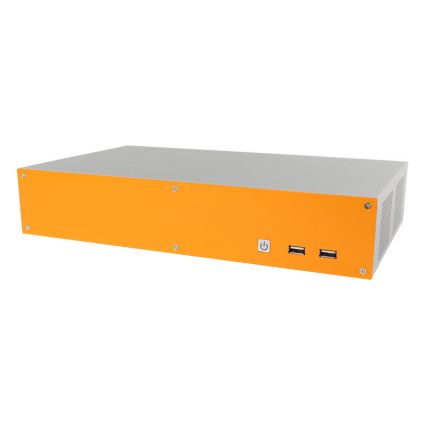

OnLogic Industrial Intel Haswell Expandable Computer
Part Number: MC600-50
EMPOWERED, EMBEDDED COMPUTING
Breeze through the most demanding commercial applications with Intel Haswell desktop processing in a compact powerhouse of a system. The MC600-50 (part of the MC600 Series) can be configured with everything from an economical but HD-capable Pentium to an ultra-fast, quad-core i7 processor. Combined with the Q87 chipset, this system is capable of advanced features like Intel vPro technology and supports up to 16 GB of RAM. The MC600-50 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
EXPAND YOUR HORIZONS
Designed with versatility in mind, the MC600 is enclosed in an expandable, scratch-resistant, all-metal enclosure that’s tough enough for commercial applications and sleek enough for office desktops. The cross-case ventilation is optimized for low noise and reliable, 24/7 operation. With two expansion slots to accommodate network adapters, video cards, or additional I/O, the MC600-50 enables out-of-the-box customization to adapt to any connectivity need. The system is also designed with eight mounting points for hard drives, making it ideal for storage intensive applications without the need to expand its small footprint.
ANY PORT IN A STORM
In addition to PCIe x16 expansion, the MC600-50 comes equipped with HDMI, DVI-I, and DisplayPort (supports triple independent display), as well as 6 USB ports (including 4 USB 3.0 ports on the rear), dual Gigabit LAN and 3 RS-232/422/485 COM ports. The high-speed mSATA SSD can be supplemented with two internal 3.5″ hard drives for up to 8 TB of storage.
| SKU | MC600-50 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor Socket | LGA1150 |
| Processor Generation | Haswell |
| Chipset | Intel Q87 |
| Graphics/GPU | Intel 4th Generation HD Graphics |
| Memory Type | DDR3 SO-DIMM (non-ECC) |
| Memory Capacity | 16 GB |
| Memory Speed | 1600 MHz 1333 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 1 HDMI port 1 DisplayPort 1 DVI-I port 4 USB 3.2 Gen 1 ports 2 Gb LAN ports 3 RS-232/422/485 COM ports 2 Audio jacks; line-out, mic-in |
| Front I/O | 2 USB 2.0 ports Power Button |
| Expansion Options | 1 PCIe x16 slot 1 PCIe Mini Card (full height) |
| Storage Options | 2.5″ HDD/SSD 3.5″ HDD |
| LAN Controller | Intel I210 GbE Intel I217LM GbE with Intel AMT |
| Onboard Connectors | 8 USB 2.0 ports via 4 pin headers 3 RS-232 COM headers 1 8-bit GPIO header 1 Speaker header 24-pin ATX connector |
| Included Power Supply | 120 W Internal power supply |
| System Monitoring | Watchdog Timer |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 334 x 64 x 198 mm 13.1″ x 2.5″ x 7.8″ |
| Case Type | Expandable |
| Case Material | Steel |
| Port Punchouts | 2 Serial 2 USB 5 Antenna holes |
| Mounting Options | Wall-mount |
| Included Accessories | Rubber feet DC Jack Retaining Clip |
