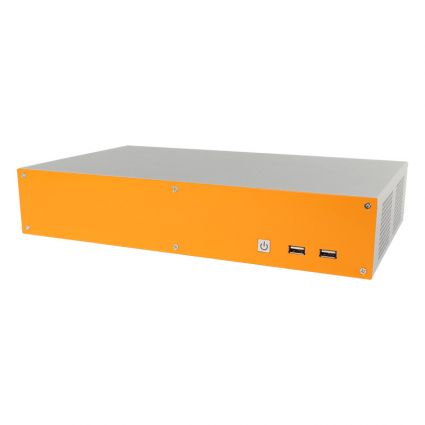

OnLogic Industrial Intel Skylake Expandable Computer
Part Number: MC600-52
POWERED BY SKYLAKE
Perfectly balance horsepower and energy-efficiency with Intel Skylake processing. Ideal for commercial deployments requiring HD capable performance, the MC600-52 (part of the MC600 Series) features Intel’s 6th Generation Core i processors paired with the advanced embedded H110 chipset. Supporting up to 32 GB of RAM and advanced features, including dual independent display and true 4K resolution, this system perfectly complements the most demanding multimedia applications. The MC600-52 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
ROOM TO GROW
The MC600-52 was built with expansion in mind. The all metal enclosure allows you to install a wide range of PCIe cards. Available options include a 4-port network adapter as well as a 4-port PoE card. The MC600-52 can even be configured with an available AMD Radeon E6460 graphics card, making it ideally suited for graphics intensive applications like advanced digital signage.
BUILT FOR INDUSTRY 4.0
The MC600-52 features a wide array of industrially-focused I/O and is uniquely suited to commercial and embedded deployments requiring a large versatile connectivity options or the need to connect multiple peripherals. Dual Gb LAN, one RS-232 and one RS-232/422/485 COM, 6 USB (including four USB 3.0 ports), and dual independent display support over HDMI, DisplayPort, or VGA make the MC600-52 a true industry 4.0 hub. Further enhance interface capabilities with PCIe expansion options, allowing for additional LAN or POE ports.
| SKU | MC600-52 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Chipset | Intel H110 |
| Graphics/GPU | Intel 9th Generation HD Graphics |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 1 HDMI port 1 DisplayPort 1 VGA port 4 USB 3.2 Gen 1 ports 2 Gb LAN ports 1 RS-232 COM port 1 RS-232/422/485 COM port 2 Audio jacks; line-out, mic-in |
| Front I/O | 2 USB 2.0 ports Power Button |
| Expansion Options | 1 PCIe Mini Card slot (full/half height) 1 PCIe x16 slot |
| Storage Options | 2.5″ HDD/SSD mSATA |
| LAN Controller | Intel I210 GbE Intel I219V |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 334 x 64 x 198 mm 13.1″ x 2.5″ x 7.8″ |
| Case Type | Expandable |
| Case Material | Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount Wall-mount |
