OnLogic Low Profile Fanless Industrial Computer with Braswell
Part Number: ML340G-10
THE HEART OF YOUR APPLICATION
The Intel Quad-Core N3160 Braswell Celeron processor powering the ML340G-10 (part of the ML300 Series) can drive multiple HD displays while consuming less than 6 watts (for a total system wattage of less than 20 watts), striking an impressive balance between energy efficiency and processor-intensive performance. Combining versatility and reliability in an easy-to-mount, hassle-free form factor, this system makes the ideal embedded computer or fanless workstation. The ML340G-10 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
THE NEXT EVOLUTION OF THE ML300 SERIES
Wrapped in a hardened, fanless enclosure that utilizes our Hardshell™ Fanless Technology that protects the system against dust and debris while eliminating the internal fan as a point of failure, the ML340G-10 offers a versatile industrial computing platform in a surprisingly small package. The extruded aluminum heatsink provides optimal heat transfer, further improving cooling performance over other similar cases, and the entire system is designed for durability and longevity.
INTERFACE TO INTERFACE
Packing an impressive array of connectivity into its diminutive profile, the ML340G-10 boasts dual Gb LAN, four USB ports (including two USB 3.0 connectors), dual independent display via HDMI and VGA, and the option for 3 serial ports for interfacing with industrial peripherals. Inside, the ML340G-10 offers mSATA SSDs for fast and reliable solid state storage, as well as a PCIe Mini Card slot for wireless connectivity. Available mounting brackets make it easy to install securely and out of the way for even the most space-constrained applications.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | ML340G-10 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Celeron N3160 |
| Processor Speed | 1.6 GHz |
| Max Burst Frequency (GHz) | 2.24 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Braswell |
| Processor Cores | 4 |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1600 MHz |
| Memory Slot Count | 1.000000 |
| Number of Displays Supported | 2 |

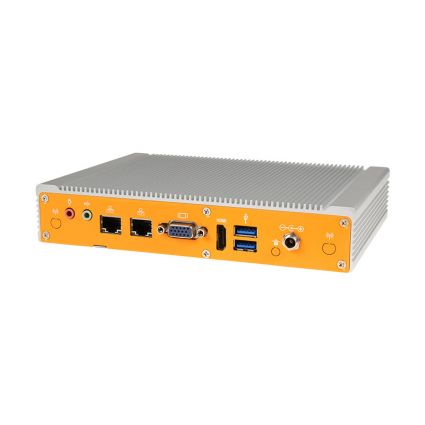

| Rear I/O | 2 USB 3.2 Gen 1 ports 2 Gb LAN ports 1 HDMI port 1 VGA port 2 Audio jacks; mic-in, line-out 1 DC jack (12~24 V input) |
| Front I/O | 2 USB 2.0 ports Power button 3 Serial ports (2 RS-232, 1 RS-232/422/485 COM) – optional |
| Expansion Options | 1 Half-height mPCIe slot |
| Storage Options | mSATA |
| LAN Controller | Intel I210 GbE |
| Input Voltage | 12~24 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 196 x 36.75 x 141 mm 7.72″ x 1.45″ x 5.55″ |
| Case Type | Compact Customizable Fanless Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Adhesive rubber feet |
