OnLogic Low Profile Fanless Industrial Intel Core i3/i5/i7 Computer
Part Number: ML340G-50
SMALL FORM FACTOR, BIG BRAINS
With a Intel Haswell processor at its heart, ranging from the stout i3-4010U to the powerful i7-4650U, the ML340G-50 (part of the ML300 Series) offers an unmatched performance to size ratio, supporting dual HD displays, including 4K for the most demanding, multimedia-intensive applications. All of that power is harnessed within an industrial, hardened form factor that doesn’t sacrifice durability or reliability for horsepower, making it equally suited to video wall signage applications or industrial workstations.
THE NEXT EVOLUTION OF THE ML300 SERIES
The ML340G-50 manages to offer a versatile industrial computing platform in a surprisingly small package. The system’s precision engineered hardened, fanless enclosure employs our unique Hardshell™ Fanless Technology to protect internal components from dust and debris while eliminating the internal fan as a point of failure. The single-interface heatsink provides optimal heat transfer, further improving cooling performance over other similar cases, and the entire system is designed for durability and longevity.
EASY INTEGRATION
Despite fitting in the palm of your hand, the ML340G-50 offers a wide array of essential I/O for any industrial application, from dual Gb LAN for network redundancy or IP camera connectivity, to six USB ports (including four USB 3.0 ports), and even two HDMI ports for independent HD displays. Three COM ports are available for connection to legacy peripherals or machinery, and the system also offers reliable, high-speed mSATA storage as well as optional Wi-Fi and Bluetooth. Designed to withstand the rigors of industrial environments, including unreliable power installations, the ML340G-50 supports 9~36 volt DC input, while available mounting brackets make it easy to install securely and out of the way for even the most space-constrained applications.
| SKU | ML340G-50 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Haswell |
| Graphics/GPU | Intel HD Graphics 5000 |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1600 MHz |
| Memory Slot Count | 1.000000 |
| Number of Displays Supported | 2 |

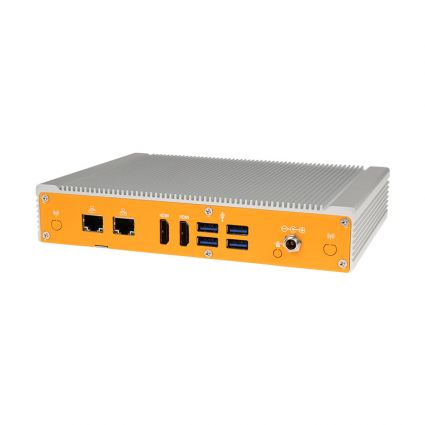

| Rear I/O | 4 USB 3.2 Gen 1 ports 2 Gb LAN ports 2 HDMI ports 1 DC jack; 9 ~ 36 V |
| Front I/O | 2 USB 2.0 ports Power button 3 Serial ports (2 RS-232/422/485, 1 RS-232 COM) – optional |
| Expansion Options | 1 Half-height mPCIe slot |
| Storage Options | mSATA |
| LAN Controller | Intel I218LM GbE Realtek RT8111G |
| Input Voltage | 9~36 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 45°C |
| Dimensions (WxHxD) | 196 x 36.75 x 141 mm 7.72″ x 1.45″ x 5.55″ |
| Case Type | Compact Customizable Fanless Modular |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Adhesive rubber feet |
