HPE DL180 G10 4208 (1/2) 16GB(1/8),SATA-3.5 HP (0/12) P408i-a, NO CD, RACK, 3YR
Part Number: P19563-B21
Processor Core Available8 core
Processor Cache Installed11 MB L3
Memory TypeHPE DDR4 Smart Memory – 16GB RDIMM
NVDIMM TypeNone
Network ControllerHPE embedded 2-port 1 GbE Ethernet adapter and optional HPE FlexibleLOM, Media Module Adapter, or PCIe stand-up card
Remote Management SoftwareHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
Power Supply Type1 HPE 500W Flexible Slot Hot Plug Power Supply
Expansion Slots6, for detailed descriptions reference the QuickSpecs
Storage ControllerHPE Smart Array P408i-a/2 GB and Smart Storage Battery
Processor NameIntel® Xeon® Scalable 3204 (6 core, 1.9 GHz, 85W)
Processor Number1
Processor Speed2.1 GHz
Standard Memory16GB 1Rx4 PC4-2933Y-R Smart Kit
Hard Drive Number (included)None ship standard, 12LFF SAS/SATA drives supported
Optical Drive TypeOptional: DVD-ROM or DVD-RW
SecurityOptional locking Bezel Kit, Intrusion Detection Kit, or HPE TPM 2.0
Form Factor2U
Weight (imperial)28.0 lb minimum, 58.0 lb maximum
Weight (metric)13.0 kg minimum, 26.0 kg maximum
Product Dimensions (imperial)3.44 x 17.54 x 24.99 in
Product Dimensions (metric)8.73 x 44.54 x 63.47 cm

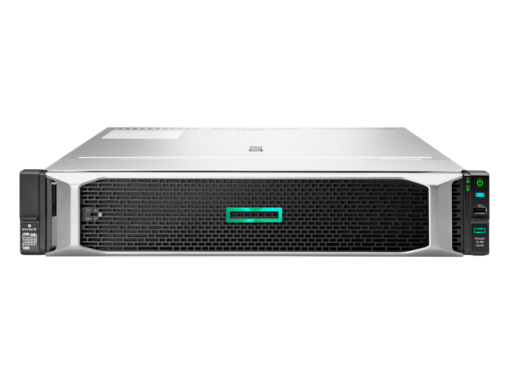

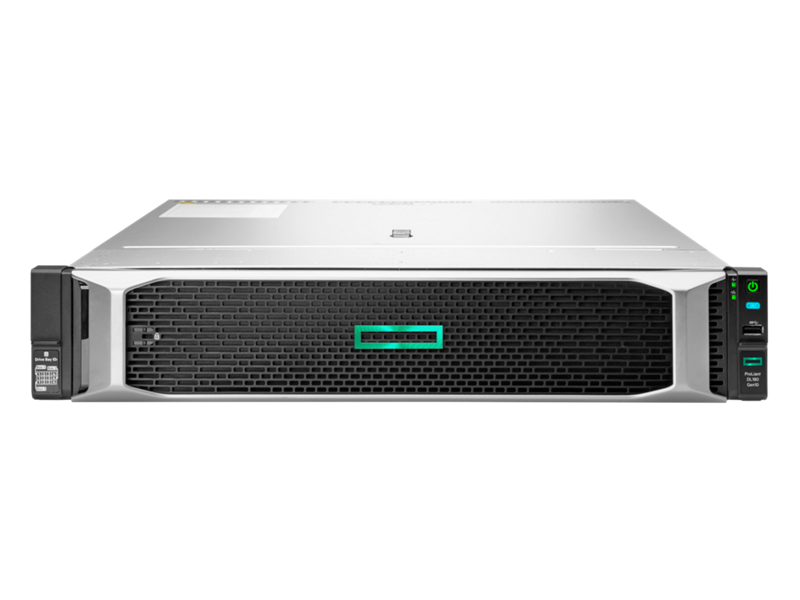

Detailed Product DescriptionHPE ProLiant DL180 Gen10 rack server with one Intel® Xeon® 4208 processor, 16 GB memory, P408i-a storage controller and battery, twelve large form factor drive bays and one 500W power supply
