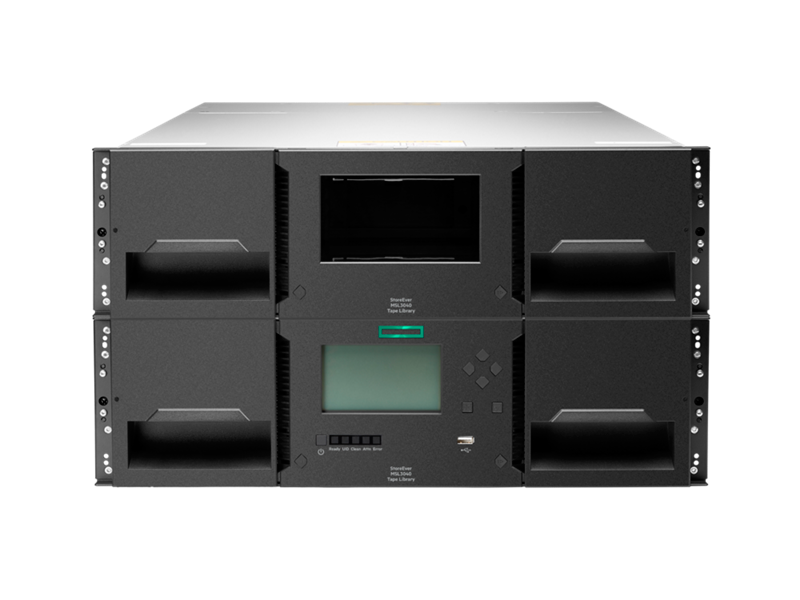

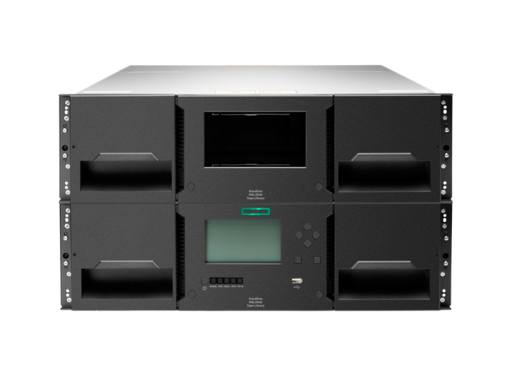

HPE MSL3040 Scalable Base Module

Part no: Q6Q62B | NSN: 7025-01-681-5946

HPE MSL3040 Scalable Base Module

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

HPE MSL3040 Scalable Base Module

Part Number: Q6Q62B

Is the global trend of exponential data growth affecting your business? The highly scalable HPE StoreEver MSL3040 Tape Library provides small to mid-sized organizations with flexibility for long-term data protection and retention of data storage assets. With its modular design and ability to reuse existing HPE MSL LTO upgrade drive kits, you can cost-effectively store up to 8.4PB1 of data. The HPE StoreEver MSL3040 Tape Library offers exceptional enterprise features and functionality as standard providing advanced security features and reliability. It delivers a tape storage solution that addresses backup and long-term data management challenges such as storing medical records, video surveillance files or for business compliance.

Drive Description LTO-8 Ultrium 30750 LTO-7 Ultrium 15000 LTO-6 Ultrium 6250. Available with SAS and Fibre Channel interfaces

Storage Capacity Up to 8.4 PB, maximum assuming 280 slots with LTO-8 compressed 2.5:1

Data Transfer Rate Up to 72.45 TB/hr with 21 LTO-8 drives compressed 2.5:1

Cartridge Slots Included 40 slots for the base module 40 slots per expansion module Scale from 40 to 280 slots in a fully expanded HPE MSL3040 Tape Library

Maximum Drives per Enclosure 3 half height drives (HH) per module to a total of 21 HH drives for a fully expanded HPE MSL3040 Tape Library.

Servers Supported HPE ProLiant rack mount and blades HPE Integrity servers Industry Standard Servers IBM® AIX servers Cisco® UCS Oracle® SPARC, x86 Maximum, depending on model

Host Interface Supports 8 Gb/s Fibre Channel or 6 Gb/s SAS tape drives

Encryption Type AES 256-bit with LTO-8, LTO-7 and LTO-6 drives

Form Factor 3U per module to a maximum of 21U

Weight (imperial) 68.34 lb packaged 55.34 lb product

Weight (metric) 31 Kg packaged 25.10 Kg Product

Product Dimensions (imperial) 45.59 x 27.09 x 12.60 in packaged 34.37 x 18.98 x 5.24 in product

Product Dimensions (metric) 1158 x 688 x 320 mm Packaged 873 x 482 x 133 mm product
