Part no: PX3-5016A3-G1

Raritan PX3-5016A3-G1 Rack Power Distribution Units (PDUs)

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

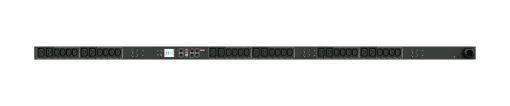

Raritan PX3-5016A3-G1 Rack Power Distribution Units (PDUs)



Part number: PX3-5016A3-G1



Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy: ISO/IEC 62053-21 1%

Remote Outlet Switching: Yes

Metering per input line: Yes for all models

Metering per Branch Circuit Breaker: Yes

Environmental Sensor Ready: Yes

Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading: Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).

View tech specs from Raritan
