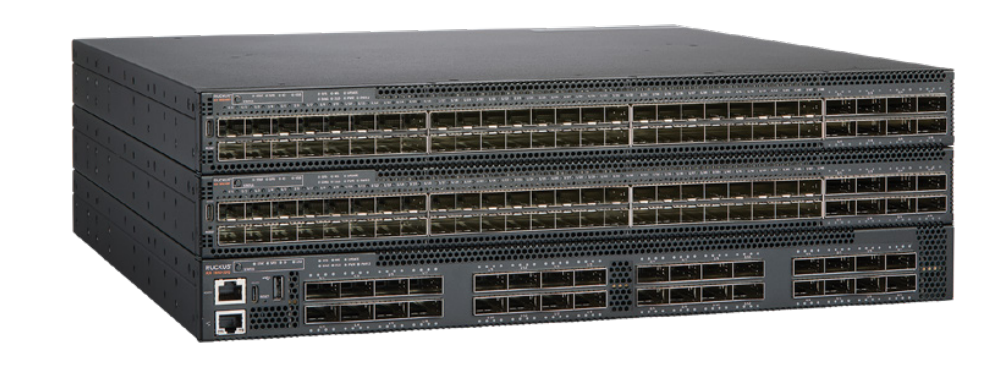

Ruckus ICX Stackable Switch ICX7850-48F

Part Number: ICX7850-48F



New user demands and technology advances are increasingly putting pressure on campus networks requiring them to scale to support more devices and deliver more bandwidth.

The rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is propelling the migration from 1GbE to Multi-gigabit at the network edge and, driving the need for faster aggregation and core solutions.

The Ruckus® ICX® 7850 is designed to meet these new challenges:

  • Flexible: Distributed chassis architecture for deploying ports exactly when and where they are needed with long distance stacking
  • Scalable: Up to 384x 100GbE or 576x 10/25 GbE ports per 12 units stack
  • Secure: Maximum security and data privacy with 128/256-bit MACsec encryption
  • Resilient: Highly resilient design with hitless failover, ISSU (In Service Software Upgrade), MCT (Multi-Chassis Trunking) and redundant, hot-swappable power supplies and fans.
  • Future Ready: Supports next generation Ethernet speeds with 10/25 Gbps at the aggregation and 40/100 Gbps at the core. Switching capacity up to 6.4 Tbps per switch.
  • Cost Effective: Pay as you grow deployment model.
  • Simple to Deploy: Unified wired and wireless management with Ruckus SmartZone. Unique features designed to simplify network deployment and management such as advanced stacking, and zero touch provisioning.



Switch Specs:

  • Ruckus ICX 7850-48F 48x 1/10/25 GbE SFP28 ports



ICX Series Switches Specifications:

Feature ICX

7150-Compact

 ICX 7150 ICX 7150

Z-Series

 ICX 7250 ICX 7450 ICX 7650 ICX 7750 ICX 7850
Switching Capacity (max) 120Gbps 180Gbps 304Gbps 256Gbps 336Gbps 1.128Tbps 2.56Tbps 6.4Tbps
1GbE RJ-45 ports 8 or 10 or 12 +2 24 +2 or 48 +2 48 24 or 48 24 or 48 48 48
1GbE SFP ports 2 24 +4 8 8 48 48 48 48
1/2.5GbE RJ-45 ports (max) 8 16
1/2.5/5/10GbE RJ-45 ports (max)

2



24
10GbE SFP+ ports (max) 2 4 8 8 12 24 +4 961 1281
10GbE RJ-45 ports (max) 2 12 24 48
25GbE SFP28 ports 48
40GbE QSFP+ ports (max) 3 2 32
100GbE QSFP28 ports (max) 2 32
PoE Power Budget (max) 240W 740W 1480W 1480W 1480W 1500W
Switches per stack (max) 12 12 12 12 12 12 12 12
Aggregate stack bandwidth 240Gbps 480Gbps 480Gbps 480Gbps 960Gbps 2.4Tbps 5.76Tbps 9.6Tbps

Data Sheet from Ruckus
