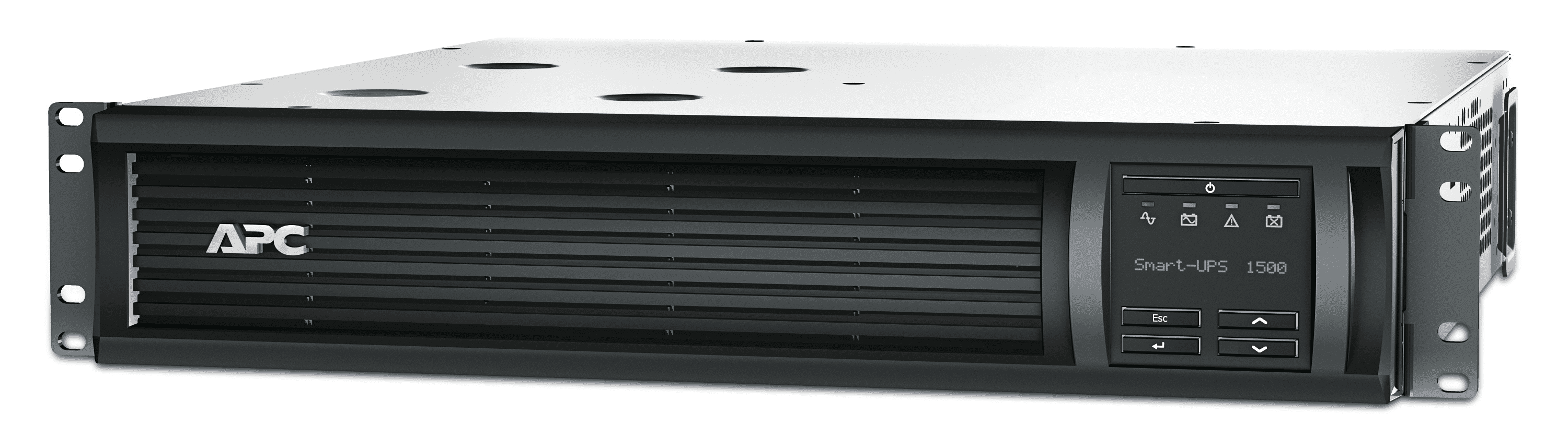

APC (SMT1500RMI2UC) APC Smart-UPS 1500VA LCD RM 2U 230V W/ SMART CONNECT

Part no: SMT1500RMI2UC | NSN: 6130-01-680-3092

APC (SMT1500RMI2UC) APC Smart-UPS 1500VA LCD RM 2U 230V W/ SMART CONNECT

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

APC (SMT1500RMI2UC) APC Smart-UPS 1500VA LCD RM 2U 230V W/ SMART CONNECT

Part Number: SMT1500RMI2UC

Technical Specifications

Output

Max Configurable Power (Watts)

1.0kWatts / 1.5kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

144 Watts

Battery Volt-Amp-Hour Capacity

432

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

459Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

432MM, 43.2CM

Maximum Depth

477MM, 47.7CM

Net Weight

26.1KG

Shipping weight

31.91KG

Shipping Height

251MM, 25.1CM

Shipping Width

594MM, 59.4CM

Shipping Depth

603MM, 60.3CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

46.0dBA

Online thermal dissipation

90.0BTU/hr
