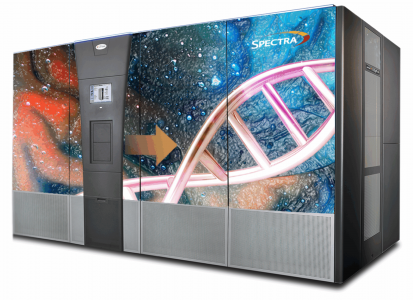

The Spectra TFinity Plus is Spectra Logic’s flagship enterprise tape library, engineered for massive data archives and hyperscale environments. A 45‑frame configuration delivers industry‑leading storage density, unmatched reliability, and the lowest cost per gigabyte of any long‑term data preservation platform.
Designed for large enterprises, research institutions and media organisations, TFinity Plus integrates seamlessly with BlackPearl and other modern data management frameworks. It supports both LTO and IBM TS11xx drives, enables partitioned or shared‑drive configurations, and scales from tens of petabytes to multiple exabytes.
Key Specifications
- Maximum capacity: up to 2.2 EB native (45‑frame configuration)
- Media supported: LTO‑9, LTO‑8, IBM TS1160
- Drive support: up to 144 LTO or 144 IBM TS11xx drives
- Slots: up to 56 400 slots (LTO media)
- Interface: 8 Gb Fibre Channel, 12 Gb SAS, Ethernet for management
- Redundancy: dual robotics and redundant control paths
- Power: 200–240 V AC, 50/60 Hz
- Form factor: multi‑frame scalable 45× library frames
For full specifications, see the TFinity Plus datasheet.
