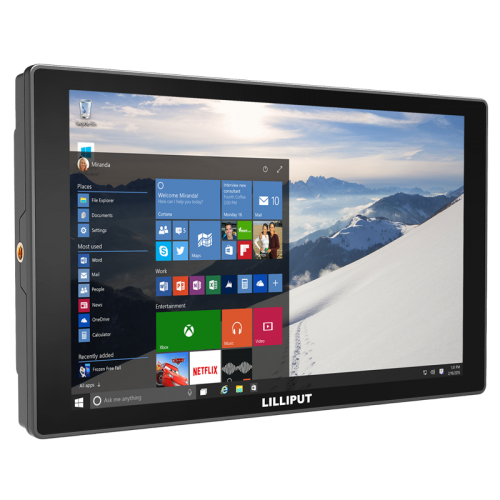

FA1016-NP/C/T – 10.1″ IPS HDMI TOUCH MONITOR
Part Number: 1119-2A-11
The Lilliput FA1016-NP/C/T is a 10.1 inch 16:9 LCD monitor with HDMI and VGA video inputs. As our highest resolution HDMI 10″ monitor, it has a 1920 x 1200 pixel panel, and 1000:1 contrast ratio – allowing for the clearest image for installation into either an industrial or camera based environment.
Monitor Specification
Screen Size (diagonal) 10.1 inch
Aspect Ratio 16:10
Native Resolution 1920 x 1200 (native) – 10.1″ 8 Bit IPS
Maximum Resolution 1920×1080 (maximum)
Viewing Angle (degrees) 170º x, 170º y
Brightness Ratio (cd/m2) 320
Contrast Ratio 1000:1
Backlight LED
Video Inputs HDMI, VGA
Audio Outputs Internal Speaker, Earphone Jack
Touchscreen Technology 10 Point Capacitive Touchscreen
Input Power DV 7-24V (12V 1.5A DC Plug provided)
Operating Temperature 0°c to +50° degrees
Mounting Options VESA 75, ¼ inch BSW thread, vertical slot mount mechanism
Contents Of Box
Product 1 x FA1016-NP/C monitor
Connection Cables 1x HDMI A-A cable, 1x VGA cable
Power Adaptor 1x DC 12V plug (available in UK, US and EU style),
Mounts and stands Gimbal Bracket (Optional) // VESA 75 Stand (Optional)
Dimensions
Height (mm) 157
Width (mm) 252
Depth (mm) 25
Weight (g) 560
Environment
Storage Temperature -20°c to 60°c
