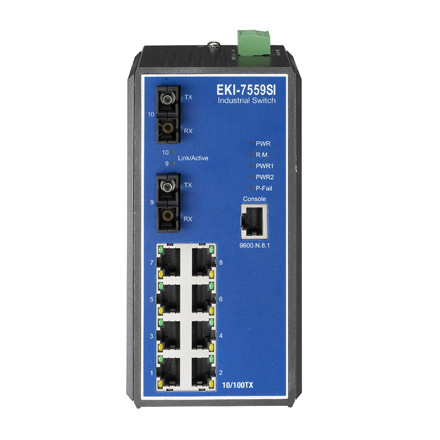

Advantech EKI-7559SI 8FE+2FE SC Single-mode Managed Ethernet Switch, -40~75℃
Part Number: EKI-7559SI-AE
EKI-7559SI supports 8 Fast Ethernet ports and 2 SC type fiber optic ports. To create reliability in your network, the EKI-7559SI comes equipped with a proprietary redundant network protocol — X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 10 ms. Furthermore, EKI-7559SI also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.
Key Features
- 2 x SC-type fiber ports, plus 8 Fast Ethernet ports
- Redundancy: X-Ring (high-speed recovery time<10ms), RSTP/STP (802.1w/1D)
- Management: Web, Telnet, Serial Console, SNMP
- Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
- Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SNMPv3
- Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
- Dual 12 ~ 48 VDC power input and 1 Relay Output
- Robust mechanism and special heat spreader design
- Supports wide operating temperature -40 ~ 75° C
