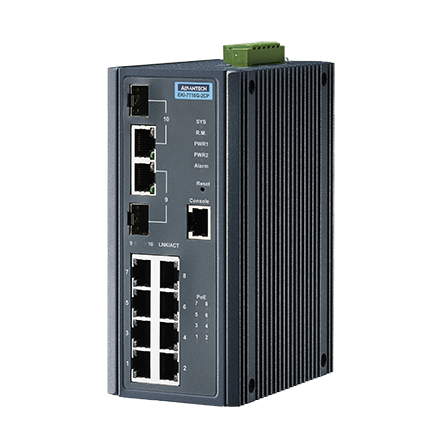

Advantech EKI-7710G-2CP 8GE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC

Part no: EKI-7710G-2CP-AE

Advantech EKI-7710G-2CP 8GE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Advantech EKI-7710G-2CP 8GE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC

Part Number: EKI-7710G-2CP-AE



The EKI-7710G-2CP/2CPI supports eight Gigabit Power over Ethernet (PoE ) ports and two Gigabit combo ports. It can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710G series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.



Key Features

  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • Dual 24~48 V DC power input and 1 relay output



Click here to download datasheet from Advantech.
