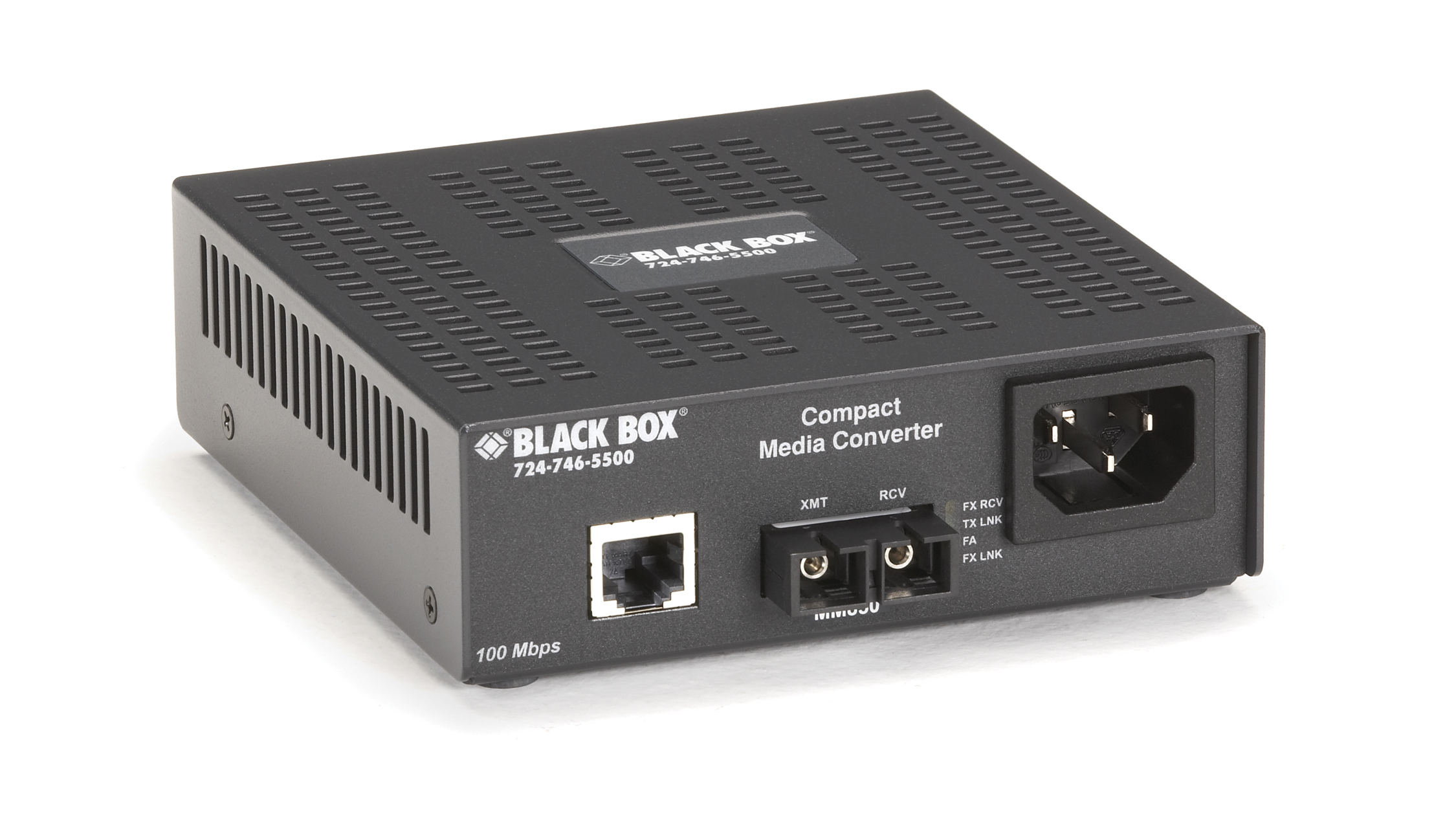

Black Box Compact Fast Ethernet (100-Mbps) Media Converter – 100-Mbps Copper to 100-Mbps Multimode Fiber, 850nm, 0.3km
Part Number: LHC009A-R3
- Automatic crossover/passthrough function on the UTP port. The converter figures out and adjusts internal termination for you!
- Link fault detection features enable you to quickly isolate any breaks or problems on the copper or fiber segments.
- When faults occur, diagnostic LEDs on each port alert you to location and type.
- Internal autosensing power supply.
- Automatic crossover/passthrough function on the UTP port. The converter figures out and adjusts internal termination for you!
- Link fault detection features enable you to quickly isolate any breaks or problems on the copper or fiber segments.
- When faults occur, diagnostic LEDs on each port alert you to location and type.
- Internal autosensing power supply.
- Select the Compact Media Converter based on the distance you need.
| General | |
| Approvals | UL® |
| CE Approval | Yes |
| Distance (Maximum) | Full-duplex: 100BASE-TX link: 100 m (328 ft.); Fiber: LHC008A-R3-LHC009A-R3: 300 m (984.3 ft.); LHC001A-R4-LHC002A-R4: 2 km (1.2 mi.); LHC005A-R4-LHC006A-R4: 40 km (24.9 mi.); LHC037A-LHC039A: 80 km (49.7 mi.) |
| Fiber Type | 850-nm multimode |
| Operation | Half- or full-duplex |
| Power | 95–240 VAC, 50–60 Hz, 0.1/0.5 A, internal autosensing |
| Item Specifications | |
| Dimensions | 1.5″H x 4.7“W x 4.4″D (3.8 x 11.9 x 11.2 cm) |
| Indicators | Fiber Receive, Twisted-Pair Link, FiberAlert, Fiber Link |
| Weight | 2 lb. (0.9 kg) |
