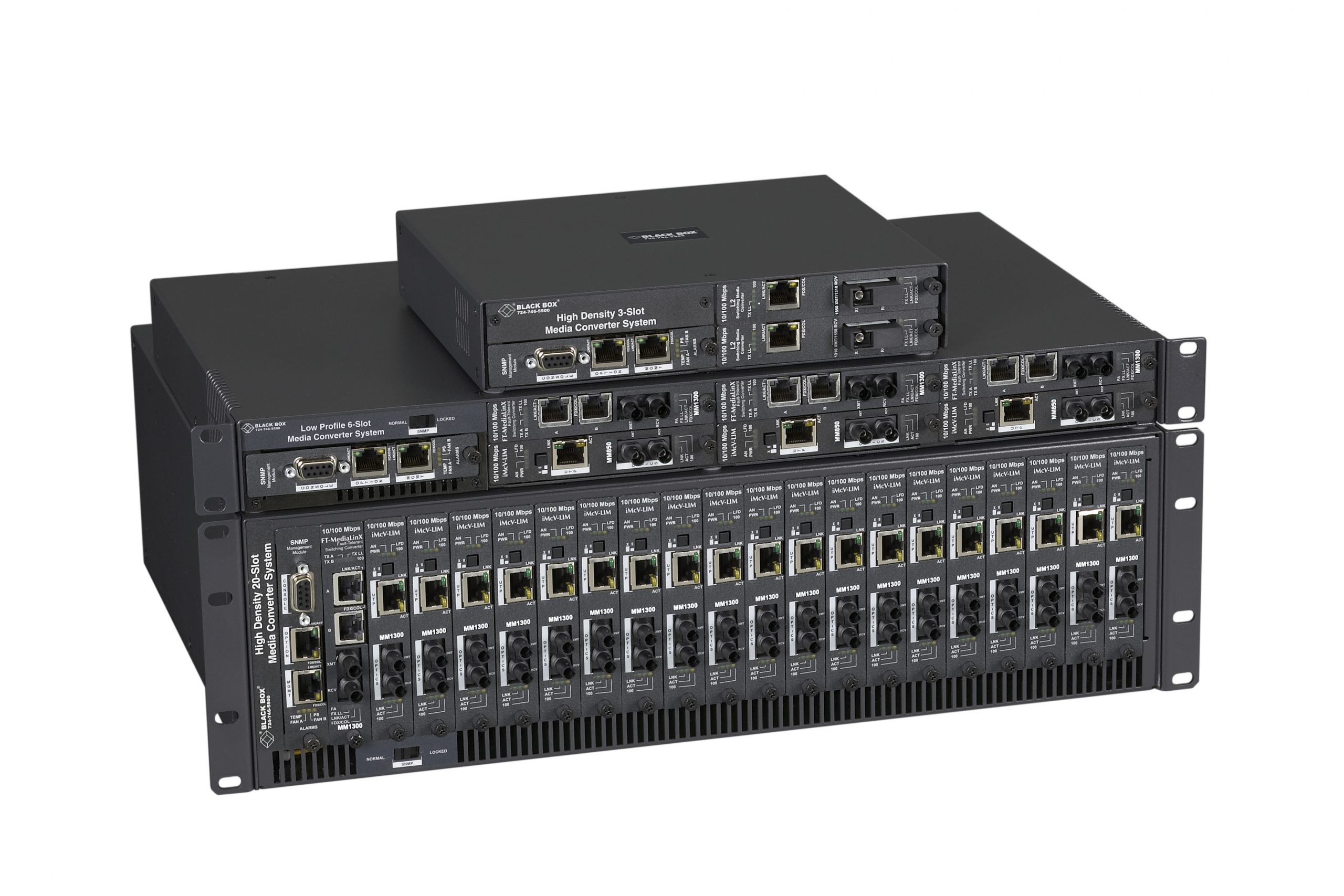

Black Box HDMCS II Managed Media Converter Chassis – 20-Slot, Rackmount, AC Power

Part Number: LMC5227A



  • 3U Rackmount chassis accommodates 20 media converter modules plus an SNMP management module. .
  • Chassis has a single AC power supply, although it can accommodate an additional AC (LMC5210A-R2) or DC (LMC5212A) power supply
  • Power supplies are user-replaceable and hot-swappable



General
Approvals FCC Class B, Part 15
CE Approval Yes
Humidity 5 to 95% (noncondensing)
Power 100-240 VAC, 50/60 Hz, autosensing, 1/0.5 A
Item Specifications
Dimensions 5.2″ (3U) H x 19″W x 13.8″D (13.2 x 48.3 x 35.1 cm)
Indicators LNK, FDX, RCV, XMT, MGMT, SNMP
Weight 30 lb. (13.6 kg)
