Black Box LPS500 Series Gigabit Ethernet (1000-Mbps) PoE Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Singlemode Fiber, 1310nm, 10km LPS500A-SM-10K-SC

Part no: LPS500A-SM-10K-SC

Black Box LPS500 Series Gigabit Ethernet (1000-Mbps) PoE Media Converter – 10/100/1000-Mbps Copper to 1000-Mbps Singlemode Fiber, 1310nm, 10km LPS500A-SM-10K-SC

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

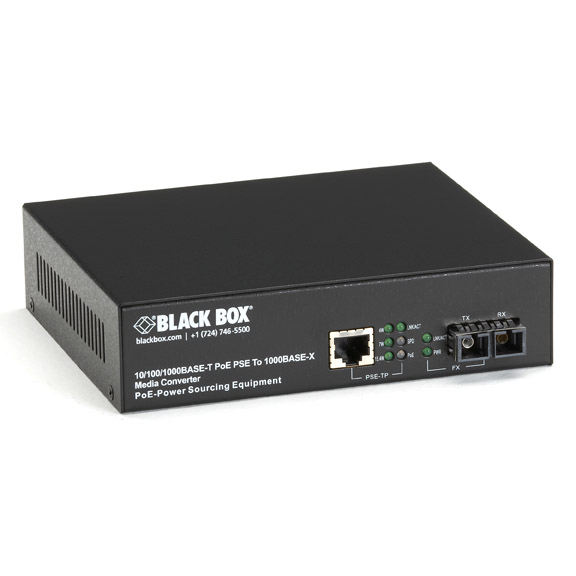

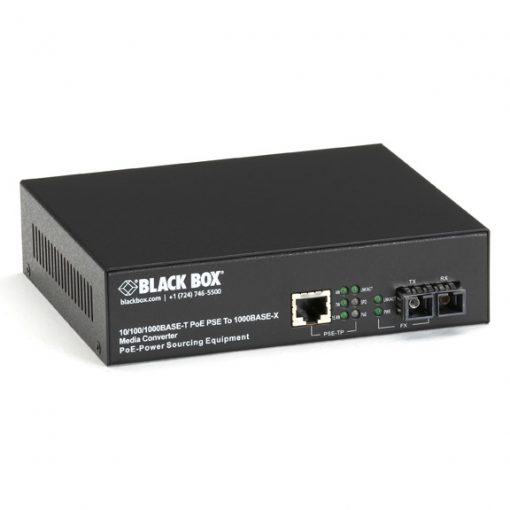

Black Box LPS500 Series Gigabit Ethernet (1000-Mbps) PoE Media Converter – 10/100/1000-Mbps Copper to 1000-Mbps Singlemode Fiber, 1310nm, 10km

Part Number: LPS500A-SM-10K-SC



  • A low-cost, economical solution for powering PoE devices over the same CATx link used for data communications.
  • Powered device (PD) signature sending detects when a PoE device is connected.
  • Protects against damage caused by overcurrent events and offers undercurrent detection.
  • Link fault passthrough monitors both copper and fiber receive ports for loss of signal.
  • Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link.
  • Supports 802.3x flow control on full-duplex ports and backpressure on 10BASE-T/100BASE-TX half-duplex ports.
  • Jumbo frame support (2 KB, normal mode; 9 KB, cut-through mode).



General
CE Approval Yes
Distance (Maximum) UTP side: 100 m (328 ft.); Fiber side (1310-nm single-mode): 10 km (6.2 mi.)
Power Input: 100-240 VAC, 47-63 Hz; Consumption (maximum): 24 W
Standards IEEE 802.3af (PoE), IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3z/ab (1000BASE-T), IEEE 802.3x full-duplex flow control, 1000BASE-LX
Item Specifications
Connectors UTP side: (1) RJ-45 (10BASE-T/100BASE-TX/1000BASE-TX); Fiber side: (1) pair of SC
Dimensions 1.6″H x 6.2″W x 5.2″D (4.1 x 15.7 x1.3 cm)
Weight 1.3 lb. (0.6 kg)
